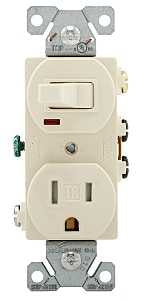

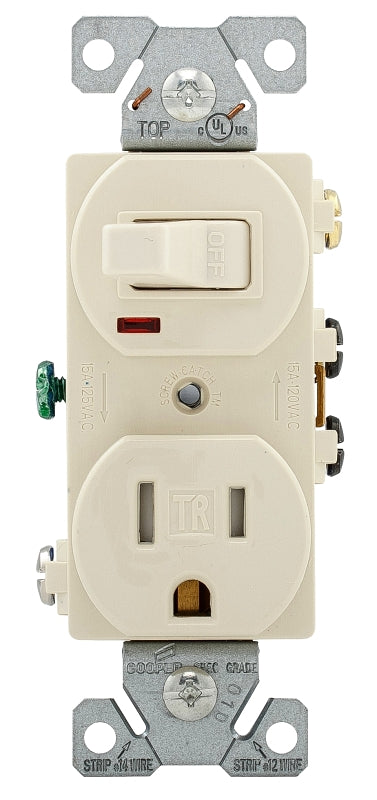

Eaton Cooper Wiring TR274LA Combination Switch/Receptacle, 2 -Pole, 15 A, 120 V Switch, 125 V Receptacle
$11.85
$13.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Cooper Wiring TR274LA Combination Switch/Receptacle, 2 -Pole, 15 A, 120 V Switch, 125 V Receptacle is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Cooper Wiring TR274LA Combination Switch/Receptacle, 2 -Pole,...
$11.85
$13.69
Unit price
/
Unavailable
Features
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Description
Description
Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is on when switch is on. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection-molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Unit: BX
UPC: 032664750243
Model Number: TR274LA
Unit: BX
UPC: 032664750243
Model Number: TR274LA
Additional Information
Additional Information
- Color: Light Almond
- Current Rating: 15 A
- Dielectric Strength: 2000 V
- Dimensions: 1.08 in D x 4.19 in H
- Material: PVC
- Mounting Type: Flush
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Terminal Type: Screw
- Type: Heavy-Duty
- Voltage Rating: 120 V Switch 125 V Receptacle
- Wire Size: 12 to 14 AWG
- Wiring Type: Back and Side
