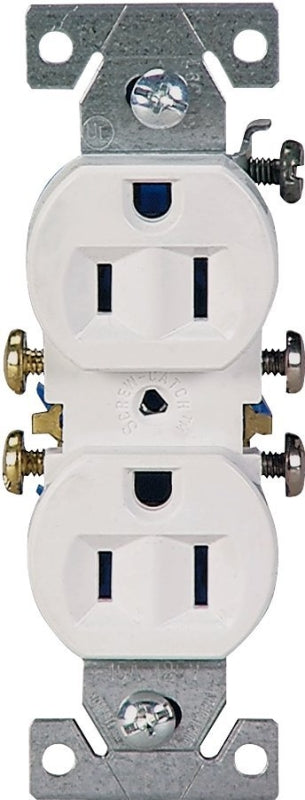

Eaton Wiring Devices 270W/10 Duplex Receptacle, PVC, White, 2-Pole, 15 A, 125 V, 3-Wire, NEMA: 5-15R
$6.89
$7.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 270W/10 Duplex Receptacle, PVC, White, 2-Pole, 15 A, 125 V, 3-Wire, NEMA: 5-15R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 270W/10 Duplex Receptacle, PVC, White, 2-Pole,...
$6.89
$7.99
Unit price
/
Unavailable
Features
- Longer, wider strap provides 40% more contact area to wallboard
- Terminal screws backed out ready for wiring
- Side wire terminals accept up to #10 solid or stranded wire
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
Description
Description
Standard duplex receptacles feature longer, wider straps providing 40% more contact area to the wallboard. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Additional Information
Additional Information
- Color: White
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.30 in W x 0.69 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Wall
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Push-in Side
