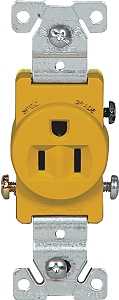

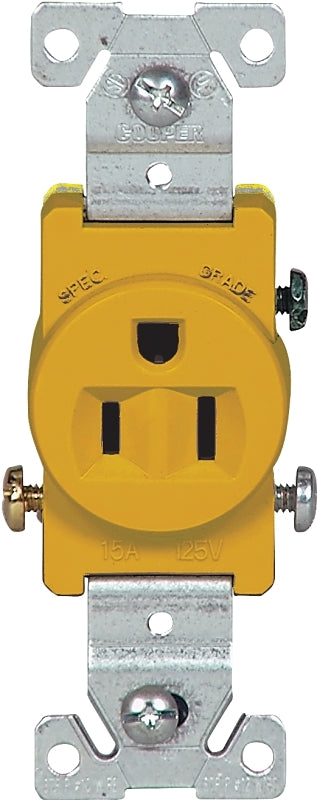

Eaton Wiring Devices 817V-BOX Single Receptacle, Flush Mounting, 2-Pole, 125 V, 15 A, Side Wiring
$7.26
$7.35
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 817V-BOX Single Receptacle, Flush Mounting, 2-Pole, 125 V, 15 A, Side Wiring is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 817V-BOX Single Receptacle, Flush Mounting, 2-...
$7.26
$7.35
Unit price
/
Unavailable
Features
- Galvanized steel, wraparound yoke mounting strap for excellent assembly security
- Extra length or width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw catch feature on duplex devices speeds mounting of wallplates
Description
Description
Meets all UL 498 requirements. Triple wire line contacts provide excellent long-term plug retention. Arc-resistant thermostat face. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws backed out. Tamper-resistant receptacles have a UL listed shutter system. cULus listed. 15 A, 125 V.
Unit: EA
UPC: 32664182402
Model Number: 817V-BOX
Unit: EA
UPC: 32664182402
Model Number: 817V-BOX
Additional Information
Additional Information
- Color: Ivory
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.3 in W x 0.87 in D
- Material: PVC
- Mounting Type: Flush
- NEMA Configuration: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -4 to 140 deg F
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Side
