Eaton Wiring Devices | Our Item #:
DORG1128479

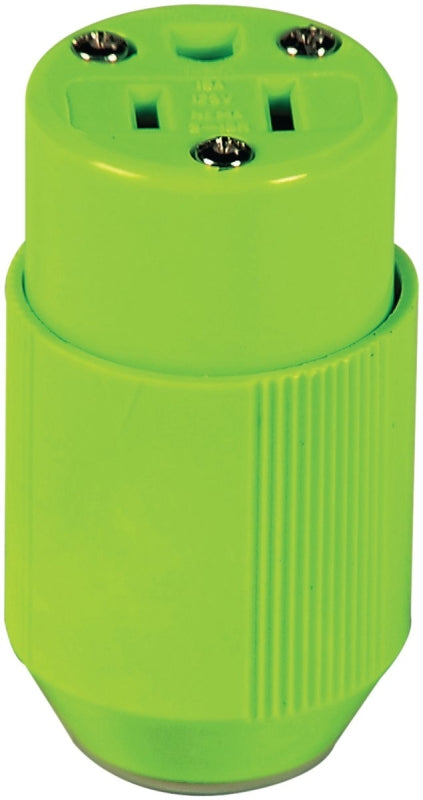

Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15R, Fluorescent Green
$18.13
$18.19
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15R, Fluorescent Green is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A...
$18.13
$18.19
Unit price
/
Unavailable
Features
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- High visibility products for quick location and identification of plugs in the middle of a job site
- High visibility product contains neoprene dust cover which prevents dust from entering the plug or connector at the cable entrance
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Description
Description
Highly visible and easy to locate at the job sight. Molded out of impact-and chemical-resistant nylon. Neoprene gasket seals cord opening to protect against moisture, dirt, wood chips and more. Temperature rating of -40 to 75 deg C. 15 A. UL 498 listed (file #E15012), CSA Certified C22.2 #42 (file #2081) (6221-02) NOM Certified. NEMA 5-15. Carded.
Unit: EA
UPC: 032664577512
Model Number: BP3487-4GN
Unit: EA
UPC: 032664577512
Model Number: BP3487-4GN
Additional Information
Additional Information
- Cable/Wire Size: 1/4 to 21/32 in
- Color: Fluorescent Green
- Current Rating: 15 A
- Dimensions: 1.83 in L x 1.38 in W
- Grounding Type: Grounded
- Material: Nylon
- NEMA Configuration: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -40 to 75 deg C
- Type: High-Visibility Straight
- Voltage Rating: 125 V
