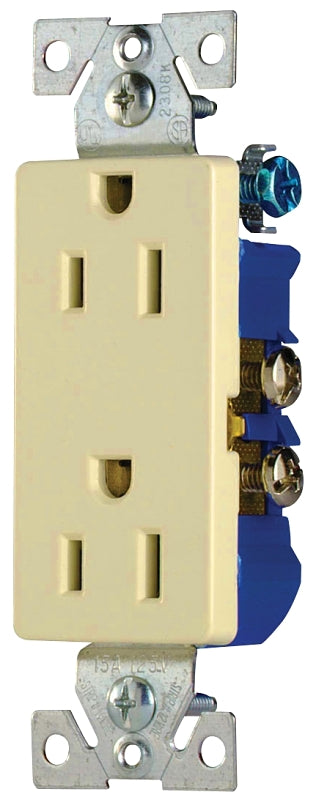

RECPTACLE DPLX STD DECR 15A IV
$2.47
$2.95
Unit price
/
Unavailable
Features
Description
Description
Longer, wider strap provides 40 percent more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for number 14 and number 12 wire and wire looper for pre-looping. Combination slot/Phillips head mounting and terminal screws for installation with power screwdrivers. Terminal screws backed out - ready for wiring. Side wire terminals accept up to number 10 solid or stranded wire. Push-in terminals accept number 14 solid wire. Temperature range of -40 to 65 degrees C. Meets all UL 498 requirements, (file no. E15058), Fed. Specs. WC-596G, NOM Certified, CSA Certified, C22.2 no.42. Standard Grade: (file no.6914) (6233-01). Meets flammability requirements per UL94, V2 rated. 15 amp, 125 volt.
Additional Information
Additional Information
- Body Material: PVC
- Color: Ivory
- Contact Material: Brass
- Current Rating: 15 A
- Dimensions: 42 in L x 130 in W x 069 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Wall
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Strap Material: Steel
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
