Square D | Our Item #:
DORG1647809
13% off

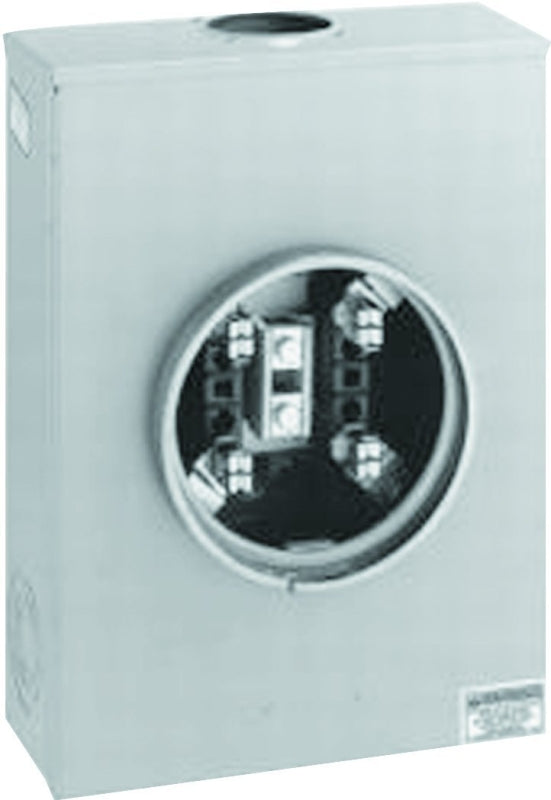

Square D URTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overhead, Underground Cable Entry, NEMA 3R Enclosure
$122.95
$141.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D URTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overhead, Underground Cable Entry, NEMA 3R Enclosure is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D URTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Over...
$122.95
$141.45
Unit price
/
Unavailable
Features
Description
Description
Single phase, 3-wire, 4-jaw, 600 VAC maximum. Without bypass or jaw release. Steel enclosure material. Unit supplied with bonded neutral. 10,000 RMS symmetrical ampere short circuit current rating. Type-A hub provisions and the bottom end-wall has a 2-1/2 in maximum knockout. Metering is utility specific. Always check with local utility company before installing. UL listed.
Additional Information
Additional Information
- Cable Entry: Overhead Underground
- Current Rating: 200 A
- Dimensions: 15 in H x 11.6 in W x 5.4 in D
- Enclosure Type: NEMA 3R
- Material: Steel
- Number of Jaws: 4
- Number Of Knockouts: 8
- Number of Phases: 1
- Voltage Rating: 600 V
- Wire Size: 1/0 AWG to 350 kcmil 14 to 2 AWG
