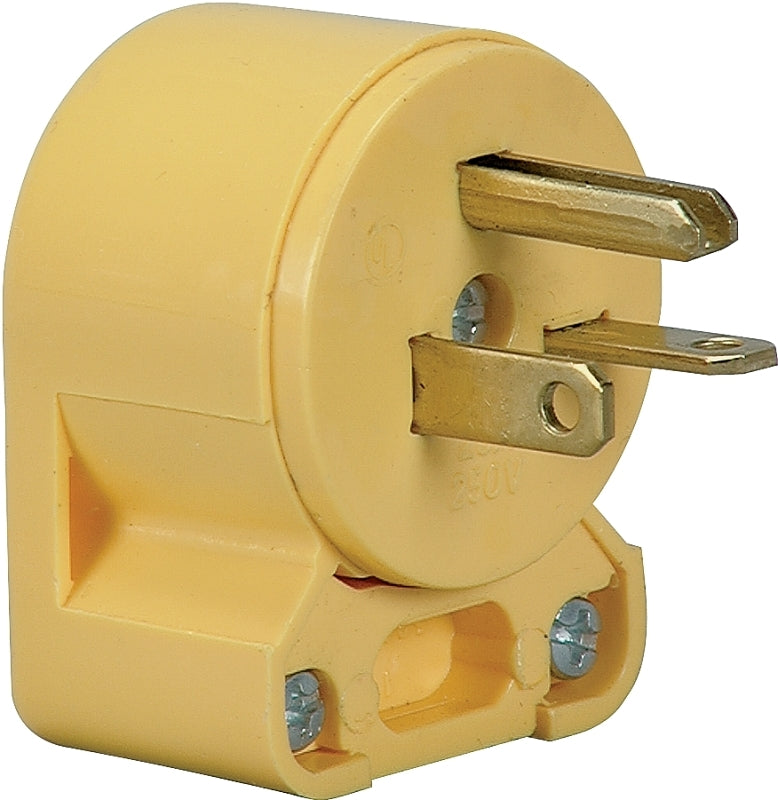

Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, Yellow
$13.42
$13.49
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, Yellow is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight B...
$13.42
$13.49
Unit price
/
Unavailable
Features
- Solid brass plug blades are firmly embedded in body
- Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
- Vinyl angle plugs have eight possible positions for maximum convenience
Description
Description
Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
Unit: EA
UPC: 32664536854
Model Number: 4509AN-BOX
Unit: EA
UPC: 32664536854
Model Number: 4509AN-BOX
Additional Information
Additional Information
- Cable/Wire Size: 1/4 to 21/32 in
- Color: Yellow
- Current Rating: 20 A
- Dimensions: 1-61/64 in L x 1-1/2 in W x 1-27/64 in D
- Grounding Type: Grounded
- Material: Thermoplastic/Vinyl
- Mounting Type: Screw
- NEMA Configuration: NEMA 6-20
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Type: Angled Straight Body
- Voltage Rating: 250 V
