Eaton Wiring Devices | Our Item #:
DORG6269393

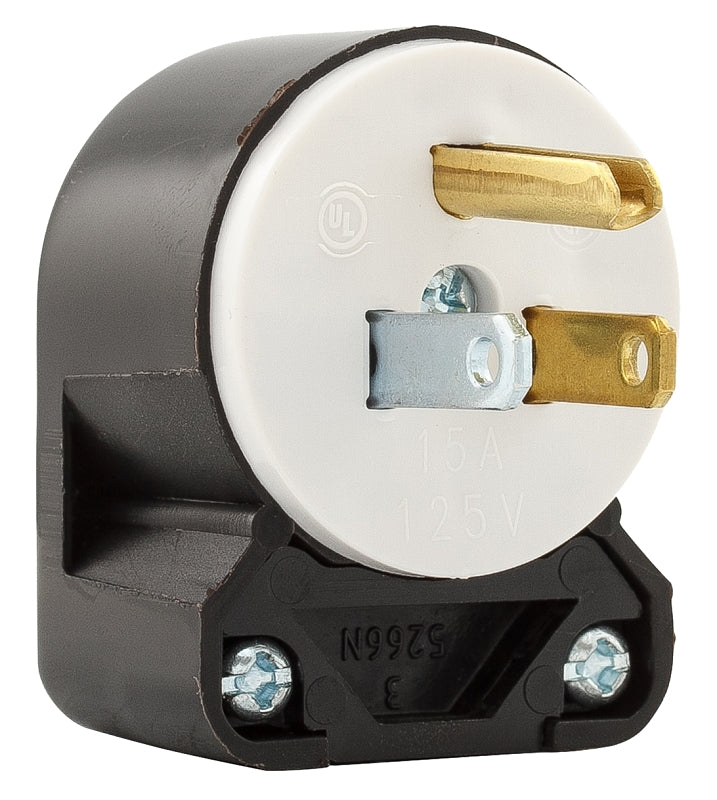

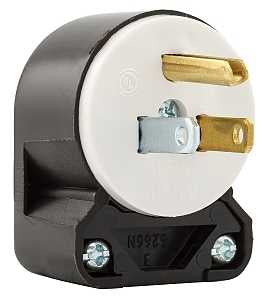

Eaton Wiring Devices 5266 Electrical Plug, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Black/White
$15.39
$15.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 5266 Electrical Plug, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Black/White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 5266 Electrical Plug, 2 -Pole, 15 A, 125 V, NE...
$15.39
$15.45
Unit price
/
Unavailable
Features
- High impact-resistant thermoplastic housings with easy-grip grooves
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Clearly marked rating, NEMA configuration and standard compliances on face of device
- Terminal screws backed out ready for wiring
Description
Description
Industrial-grade. High impact-resistant thermoplastic housings with easy-grip grooves. Plated steel assembly screws are speed-threaded and captive, reducing installation time. Solid brass plug blades are firmly embedded in body. Clearly marked rating, NEMA configuration and standard compliances (third-party listing) on face of device. Color-coded clamps identify amperage - blue 15 A. Terminal screws backed out; ready for wiring. Combination slot/Phillips head terminal, assembly and clamping screws. Meets all 498 requirements. 15 A, 125 V. UL listed. NEMA 5-15.
Unit: EA
UPC: 032664519512
Model Number: 5266AN
Unit: EA
UPC: 032664519512
Model Number: 5266AN
Additional Information
Additional Information
- Cable/Wire Size: 1/4 to 11/16 in
- Color: Black/White
- Current Rating: 15 A
- Dimensions: 1.71 in L x 1.54 in W
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 5-15
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -40 to 70 deg C
- Type: Straight
- Voltage Rating: 125 V
