EATON WIRING DEVICES | Our Item #:
DORG6981864

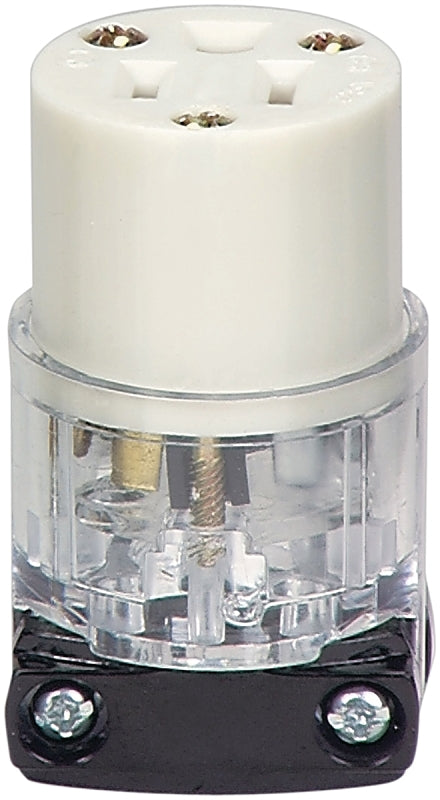

Eaton Wiring Devices WD8269 Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Clear
$32.73
$32.79
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices WD8269 Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Clear is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices WD8269 Electrical Connector, 2 -Pole, 15 A, 12...
$32.73
$32.79
Unit price
/
Unavailable
Features
- High impact-resistant thermoplastic housings
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Clearly marked rating, NEMA configuration and standard compliances on face of device
- Terminal screws backed out ready for wiring
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Description
Description
Hospital-grade. Meets all UL 498 requirements. High-impact resistant thermoplastic housing. See-through terminal cover allows inspection of connections. NEMA construction and standard compliances. Color-coded clamps. 15 A, 125 V. Boxed.
Unit: EA
UPC: 032664344503
Model Number: 8269
Unit: EA
UPC: 032664344503
Model Number: 8269
Additional Information
Additional Information
- Cable/Wire Size: 1/4 to 11/16 in
- Color: Clear
- Current Rating: 15 A
- Dimensions: 2.61 in L x 1.54 in W
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 5-15
- Number of Poles: 2
- Number Of Wires: 3
- Type: Straight Blade
- Voltage Rating: 125 V
