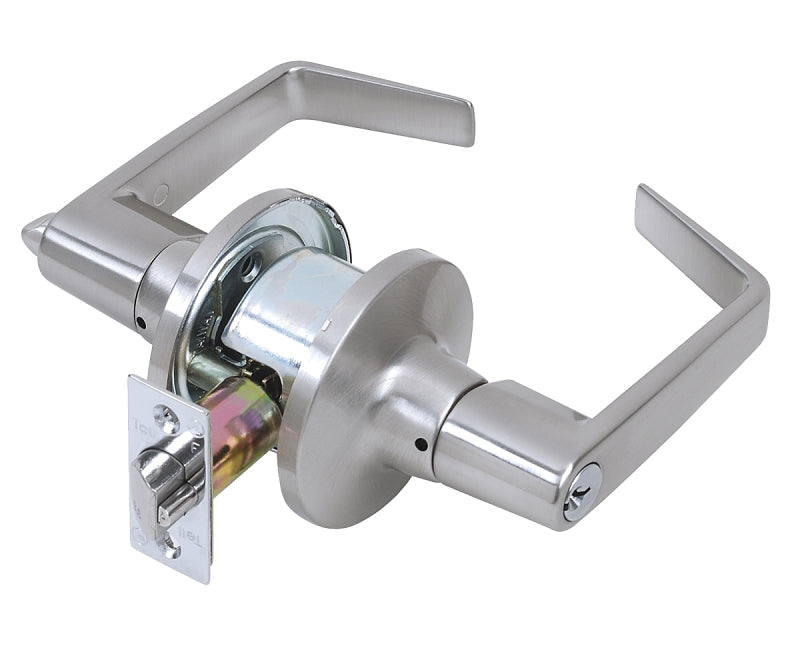

Tell Manufacturing CL100201 Entry Lever, Turnbutton Lock, Satin Chrome, Steel, 2 Grade

Complies with ANSI A156.2, Grade 2 (400,000 cycles) lever, UL listed for 3 hr fire door. Door range of 1-3/8 to 2 in. Backset of 2-3/4 in standard. Strike, T-strike (1-1/8 in x 2-3/4 in). Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latch bolt is operated by a lever from either side, outside lever is locked by turn button from inside, it is unlocked by a key from outside or rotating inside lever. There is a six-pin SCC keyway with two nickel keys per lock.

• Backset Size: 2-3/4 in
• Bolt Throw Size: 1/2 in
• Door Thickness: 1-3/8 to 2 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Satin Chrome
• Keyway Type: C
• Latch Housing Diameter: 3/4 in
• Lock Type: Turnbutton
• Material: Steel
• Rose/Base Dimensions: 3 in
• Security Grade: 2
• Strike Size: 1-1/8 x 2-3/4 in
• Strike Type: T-Style
• Suitable for: 1-3/8 to 2 in THK Doors
• Throw Length: 1/2 in
• Type: Light-Duty
