CONNECTICUT ELECTRIC | Our Item #:
DORG5963640
13% off

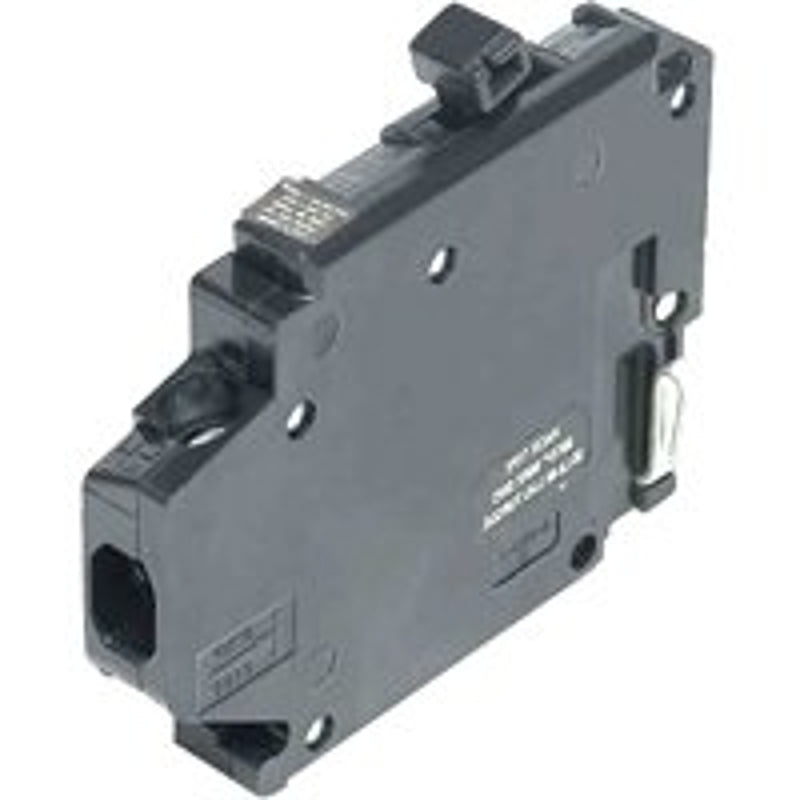

Challenger A130L Circuit Breaker, Type A, Type UBITBA, 30 A, 1 -Pole, 120/240 V, Standard Trip, Plug Mounting
$44.16
$50.85
Unit price
/
Unavailable
Shipping calculated at checkout.
Challenger A130L Circuit Breaker, Type A, Type UBITBA, 30 A, 1 -Pole, 120/240 V, Standard Trip, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Challenger A130L Circuit Breaker, Type A, Type UBITBA, 30 A, 1 -Pol...
$44.16
$50.85
Unit price
/
Unavailable
Features
Description
Description
Requires 1/2 of one 1 in space. 120 V 10,000 AIC. HACR rated. "L" suffix means breaker attaches to the left hand side of the bus bar only. "R" suffix means breaker attaches to the right hand side of the bus bar only. Breakers should be bought in pairs to fill the 1 in space.
Unit: EA
UPC: 094925021028
Model Number: A130L
Unit: EA
UPC: 094925021028
Model Number: A130L
Additional Information
Additional Information
- Current Rating: 30 A
- Dimensions: 3-1/4 in L x 1/2 in W x 2-1/2 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Suitable for: Thomas and Betts Challenger Load Centers Well Pumps Bathroom Heaters and Electric Motors
- Trip Type: Standard
- Type: Type A Type UBITBA
- Voltage Rating: 120/240 V
- Wire Size: 10 to 2 AWG
