Cutler-Hammer | Our Item #:
DORG8386757
13% off

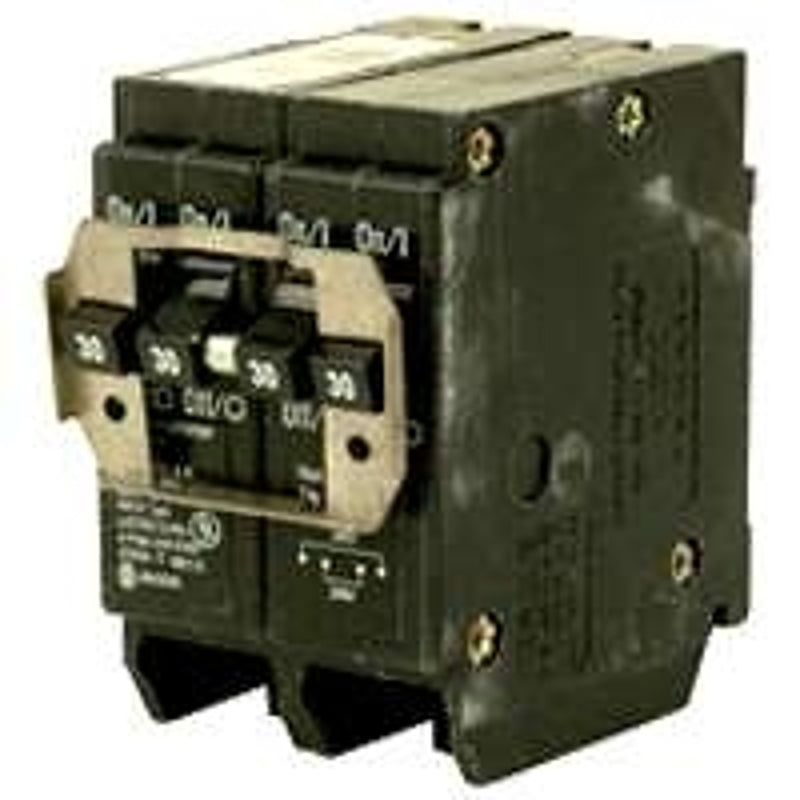

CIRCUIT BRKR BQ 4P 2-30A/2-40A
$41.34
$47.65
Unit price
/
Unavailable
Shipping calculated at checkout.
CIRCUIT BRKR BQ 4P 2-30A/2-40A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
CIRCUIT BRKR BQ 4P 2-30A/2-40A
$41.34
$47.65
Unit price
/
Unavailable
Features
Description
Description
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires (2) 1-inch spaces, Wire size range #14-4, 120/240 volt AC .9lb weight, 3" x 2" x 3". UL Listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec Classification W-C375. 120/240 volt, 10,000 AIC interrupting capacity,
Additional Information
Additional Information
- Current Rating: 30/40 A
- Dimensions: 3.1 in L x 1.97 in W x 2.88 in H
- Frame Size: 50 A
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Number of Phases: 1
- Number of Poles: 4
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Terminal Type: Feed-Thru
- Trip Type: Thermal Magnetic
- Type: Quadplex Type BQ
- Voltage Rating: 120/240 V
- Wire Size: 14 to 4 AWG
