Eaton Wiring Devices | Our Item #:
DORG9079930
16% off

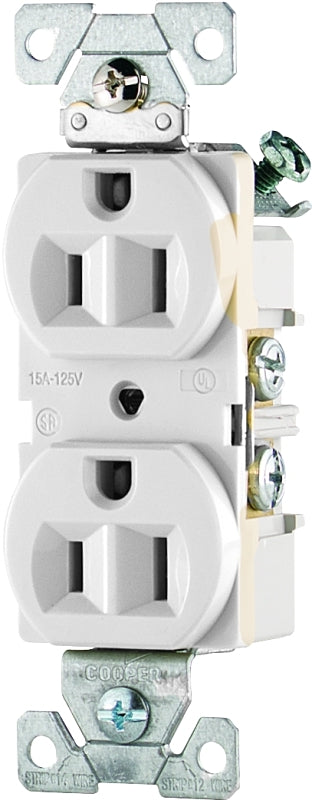

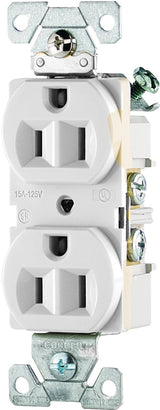

Eaton Cooper Wiring CR15W Duplex Receptacle, 2 -Pole, 15 A, 125 V, Side Wiring, NEMA: 5-15R, White
$2.61
$3.09
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Cooper Wiring CR15W Duplex Receptacle, 2 -Pole, 15 A, 125 V, Side Wiring, NEMA: 5-15R, White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Cooper Wiring CR15W Duplex Receptacle, 2 -Pole, 15 A, 125 V, ...
$2.61
$3.09
Unit price
/
Unavailable
Features
- Sturdy, compact design meets the demands of commercial spec grade performance
- Excellent plug blade retention provided by 0.032 in (0.81mm) triple-wipe brass line contacts and 0.050 in (1.27mm) brass ground
- High impact-and chemical-resistant nylon face
- 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
Description
Description
Commercial specification-grade straight blade receptacles - 15 A-125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Unit: EA
UPC: 032664489037
Model Number: CR15W
Unit: EA
UPC: 032664489037
Model Number: CR15W
Additional Information
Additional Information
- Color: White
- Current Rating: 15 A
- Dimensions: 4 in L x 1.24 in W x 0.79 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Yoke
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Side
