Eaton Wiring Devices | Our Item #:
DORG6842744
13% off

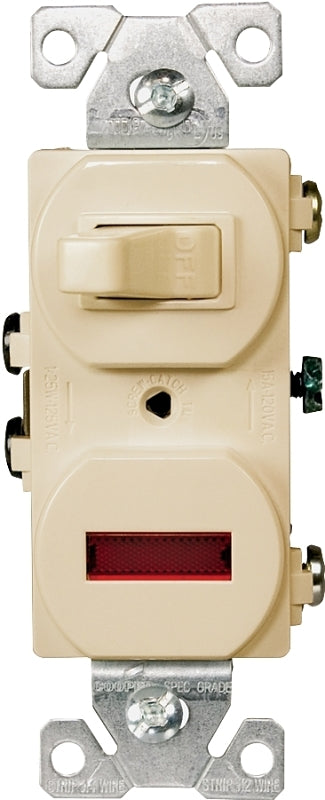

Eaton Wiring Devices 277V-BOX Combination Toggle Switch, 15 A, 120/277 V, Screw Terminal, Steel Housing Material, Ivory
$12.42
$14.35
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 277V-BOX Combination Toggle Switch, 15 A, 120/277 V, Screw Terminal, Steel Housing Material, Ivory is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 277V-BOX Combination Toggle Switch, 15 A, 120/...
$12.42
$14.35
Unit price
/
Unavailable
Features
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
- Thick steel mounting strap is zinc-plated for corrosion resistance
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws backed out and ready for wiring
- Pilot light may be wired to indicate power on or power off
- Combination Phillips/slotted screw heads ensure faster installation
Description
Description
Single pole side wire switch. Grounding terminal screw standard. 15 A, 120/277 V rating. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Terminal screws backed out ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Pilot light rating of 1/25 W - 120 V, may be wired to indicate power "on" or power "off". Combination slot/Phillips head mounting and terminal screws.
Unit: EA
UPC: 32664161803
Model Number: 277V-SP-L
Unit: EA
UPC: 32664161803
Model Number: 277V-SP-L
Additional Information
Additional Information
- Actuator Type: Toggle
- Color: Ivory
- Current Rating: 15 A
- Dimensions: 3.28 in L x 1.375 in W x 0.95 in D
- Housing Material: Steel
- Mounting Type: Strap
- Number of Poles: 1
- Switch Operation: Back and Side
- Temperature Rating: -40 to 65 deg C
- Terminal Type: Screw
- Voltage Rating: 120/277 V
