EATON WIRING DEVICES | Our Item #:
DORG8384646

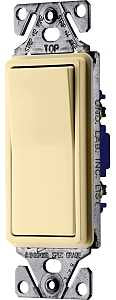

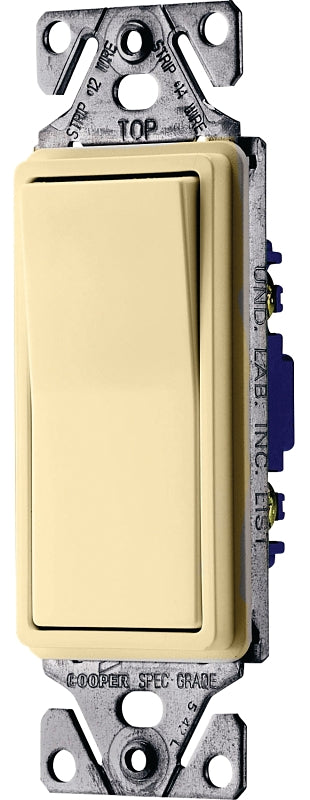

Eaton Wiring Devices 7500 Series C7503V-SP Rocker Switch, 15 A, Lead Wire Terminal, 120/277 V
$14.93
$14.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices 7500 Series C7503V-SP Rocker Switch, 15 A, Lead Wire Terminal, 120/277 V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices 7500 Series C7503V-SP Rocker Switch, 15 A, Lea...
$14.93
$14.99
Unit price
/
Unavailable
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Lighted switches glow in OFF position
- Redesigned paddle for easier actuation and quiet operation
Description
Description
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Redesigned paddle. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements, file # E18704. Carded.
Unit: EA
UPC: 032664644214
Model Number: C7503V-SP
Unit: EA
UPC: 032664644214
Model Number: C7503V-SP
Additional Information
Additional Information
- Color: Ivory
- Contact Configuration: 3-Way
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material: Thermoplastic
- Includes: (1) Metal Strap
- Mounting Type: Strap
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Lead Wire
- Voltage Rating: 120/277 V
