EATON WIRING DEVICES | Our Item #:
DORG5228408
13% off

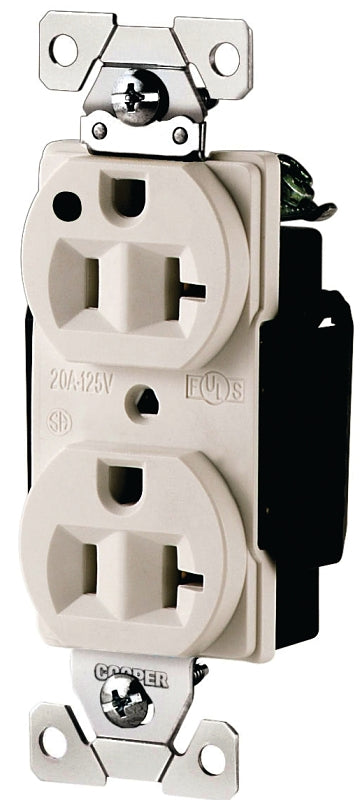

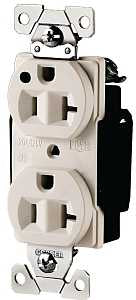

Eaton Wiring Devices AH8300W Duplex Receptacle, Brass, White, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R
$14.25
$16.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices AH8300W Duplex Receptacle, Brass, White, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices AH8300W Duplex Receptacle, Brass, White, 2-Pol...
$14.25
$16.45
Unit price
/
Unavailable
Features
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
- Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
- High impact-and chemical-resistant nylon face
- Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Description
Description
Arrow Hart's feature rich line of Hospital Grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
Unit: EA
UPC: 32664705151
Model Number: AH8300W
Unit: EA
UPC: 32664705151
Model Number: AH8300W
Additional Information
Additional Information
- Color: White
- Current Rating: 20 A
- Dimensions: 4.19 in L x 1.30 in W x 0.88 in D
- Frequency Rating: 60 Hz
- Material: Brass
- Mounting Type: Wall
- NEMA Configuration: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 70 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
