Eaton Wiring Devices | Our Item #:
DORG4636106
13% off

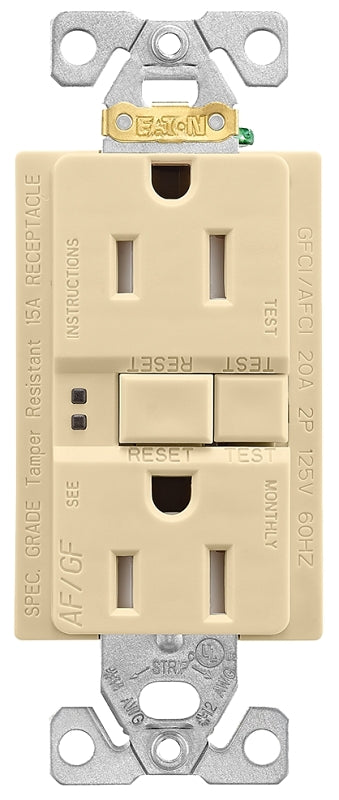

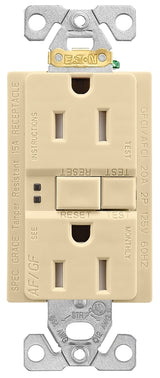

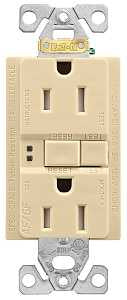

Eaton Wiring Devices TRAFGF15V-K-L Duplex Receptacle Wallplate, 2 -Pole, 15 A, 125 V, Back, Side Wiring, Ivory
$43.02
$49.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices TRAFGF15V-K-L Duplex Receptacle Wallplate, 2 -Pole, 15 A, 125 V, Back, Side Wiring, Ivory is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Eaton Wiring Devices TRAFGF15V-K-L Duplex Receptacle Wallplate, 2 -...
$43.02
$49.55
Unit price
/
Unavailable
Features
- Protects from both series and parallel arcs downstream from the outlet Branch Circuit (OBC) AF/GF receptacle
- OBC AF/GF receptacles also protect from upstream series arcs
- Trip indicators make it easy to diagnose arc and ground faults
- Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
- Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) UL943 safety standards
- Ground termination with backwire clamp provides secure wiring and reduces installation time
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Tapered backwire openings handle multiple wire sizes and types for applications up to #10 AWG solid or standard wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
- Lock-out functionality prevents miswired line-load connections and GFCI/AFCI circuitry damage
Description
Description
Eaton Wiring Devices Duplex Receptacle Wallplate, 125 V, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, Back, Side Wiring, 14 to 10 AWG Wire, 5-15R, 30 deg C Operating, PVC/Thermoplastic, Ivory, Dimensions: 2.81 in L x 2.01 in W x 4.62 in H, Includes: Thermoplastic Wallplate
Additional Information
Additional Information
- Color: Ivory
- Current Rating: 15 A
- Dimensions: 2.81 in L x 2.01 in W x 4.62 in H
- Frequency Rating: 60 Hz
- Includes: Thermoplastic Wallplate
- Material: PVC/Thermoplastic
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: 30 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
