Square D | Our Item #:
DORG6720981
13% off

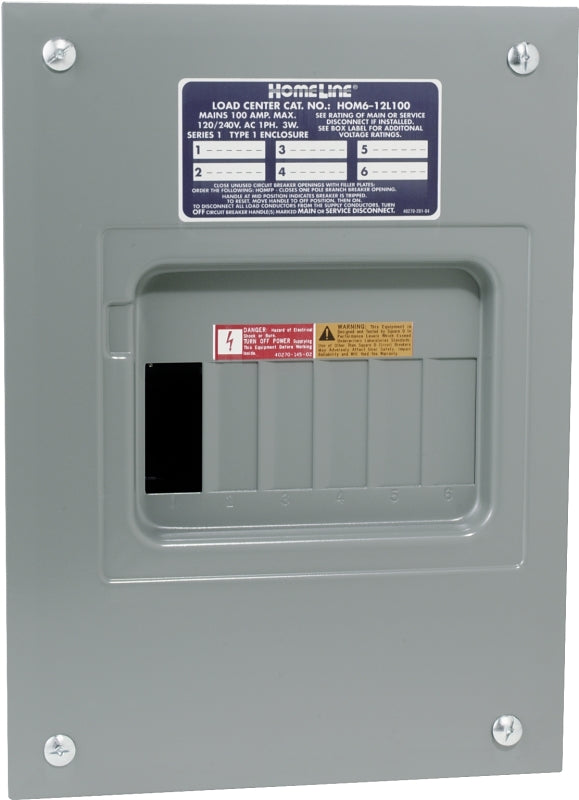

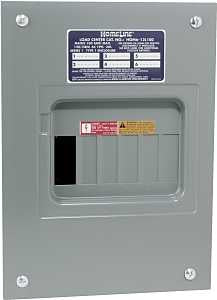

Square D Homeline HOM612L100FCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Gray, Plug
$34.42
$39.65
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D Homeline HOM612L100FCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Gray, Plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D Homeline HOM612L100FCP Load Center, 100 A, 6-Space, 12-Cir...
$34.42
$39.65
Unit price
/
Unavailable
Features
- Accommodates plug-on secondary surge arrestor
- Overhead/underground feed simply by rotating the device before installing
- Flush mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Description
Description
Main lug indoor load center, 100 A, 6 space/12 circuit. 1-1/2 in knockouts in the top and bottom end walls to allow for use with either overhead or underground fed electrical wiring. 22,000 short circuit current rating (SCCR) and can be fitted with a secondary surge arrestor (not included) for added protection. Single phase, 3-wire, solid neutral. UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 8 to 1 AWG
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 100 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 12
- Number of Phases: 1
- Number Of Spaces: 6
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
