Square D | Our Item #:
DORG6721864
13% off

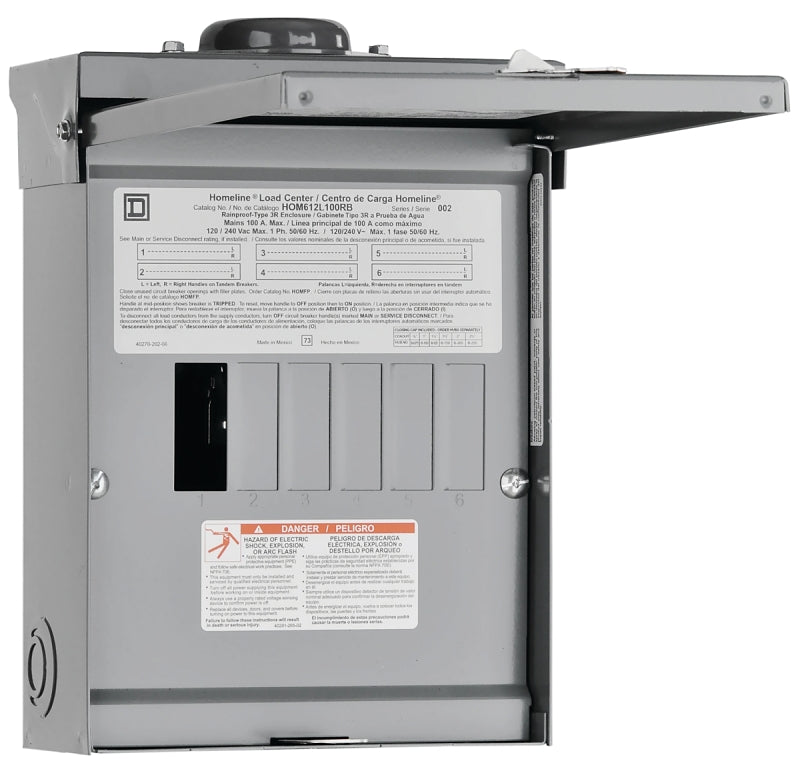

Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray
$51.23
$58.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -...
$51.23
$58.99
Unit price
/
Unavailable
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Description
Description
Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 8 to 1 AWG
- Color: Gray
- Cover/Lid Type: Surface
- Current Rating: 100 A
- Enclosure Type: NEMA 3R
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 12
- Number of Phases: 1
- Number Of Spaces: 6
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
