Square D | Our Item #:
DORG6191845
13% off

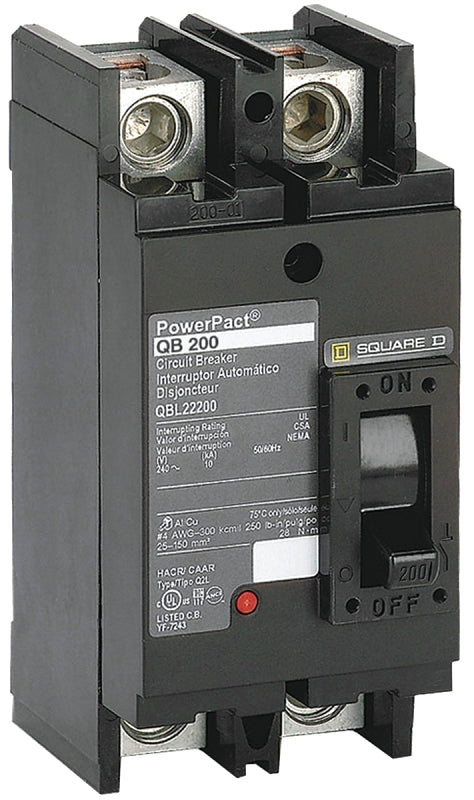

Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black
$185.53
$213.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V,...
$185.53
$213.45
Unit price
/
Unavailable
Features
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make - quick break mechanism
- Plug-on design, easy to install
Description
Description
PowerPact Q-frame circuit breakers are used for overcurrent protection and switching on ac systems. They are designed for 240 VAC applications.
Additional Information
Additional Information
- Actuator Type: Magnetic Thermal
- Color: Black
- Current Rating: 200 A
- Dimensions: 3.93 in W x 4.5 in D x 6.47 in H
- Enclosure Type: Q-Frame
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 2
- Operating Frequency: 50/60 Hz
- Terminal Type: Lug
- Type: Type QBL
- Voltage Rating: 240 V
- Wire Size: 4 AWG
