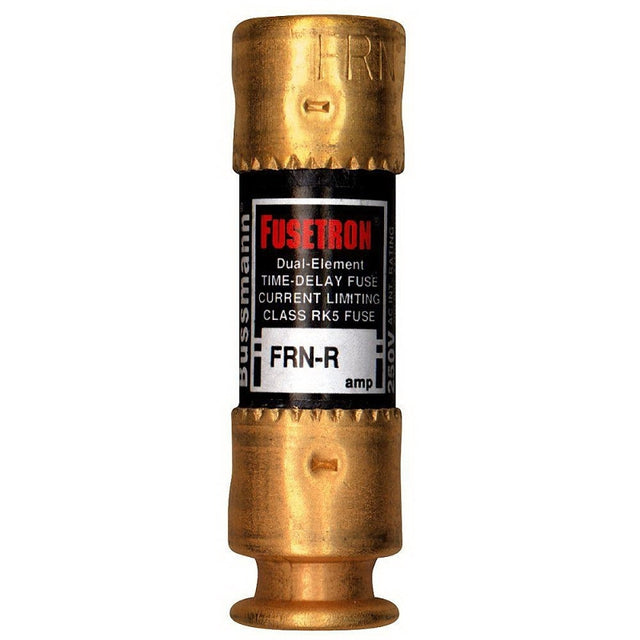

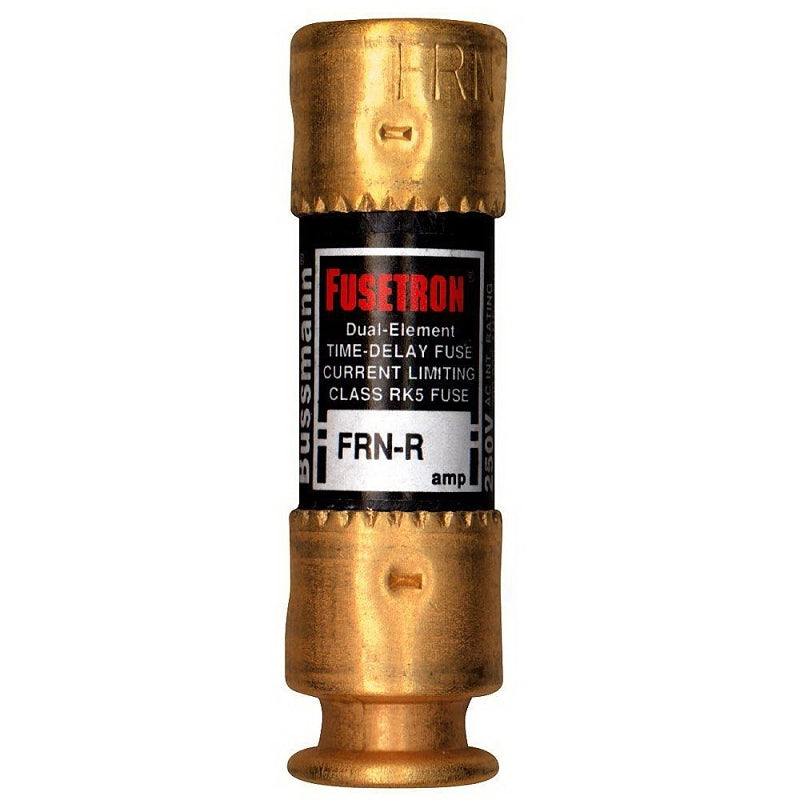

Bussmann BP/FRN-R-50 Time Delay Fuse, 50 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body
$26.03
$29.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Bussmann BP/FRN-R-50 Time Delay Fuse, 50 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Bussmann BP/FRN-R-50 Time Delay Fuse, 50 A, 250 VAC, 125 VDC, 20, 2...
$26.03
$29.99
Unit price
/
Unavailable
Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1-phase on 3-phase systems
- Simplifies and improves blackout prevention
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads
Description
Description
Bussmann series Fusetron cartridge fuses are 23% more energy-efficient and offer the ideal time delay performance. Their dual-element feature allows closer sizing to load for excellent protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 secs if the fuse experiences short circuit conditions. All fuses are UL listed Class R (IR: 200 kA). Groove in end cap or notch in knife blade permit the fuse to be used in only Class H, Class K or Class R fuse blocks.
Additional Information
Additional Information
- Body Material: Fiberglass
- Current Rating: 50 A
- Diameter: 13/16 in
- Element Type: Dual
- Indicator Type: Non-Indicating
- Interrupt Rating: 20 200 kA
- Length: 3 in
- Rejection/Non-Rejection: Rejection
- Terminal Type: Ferrule Holder
- Type: Cartridge Energy Efficient
- Voltage Rating: 250 VAC 125 VDC
