Bussmann | Our Item #:
DORG5387295

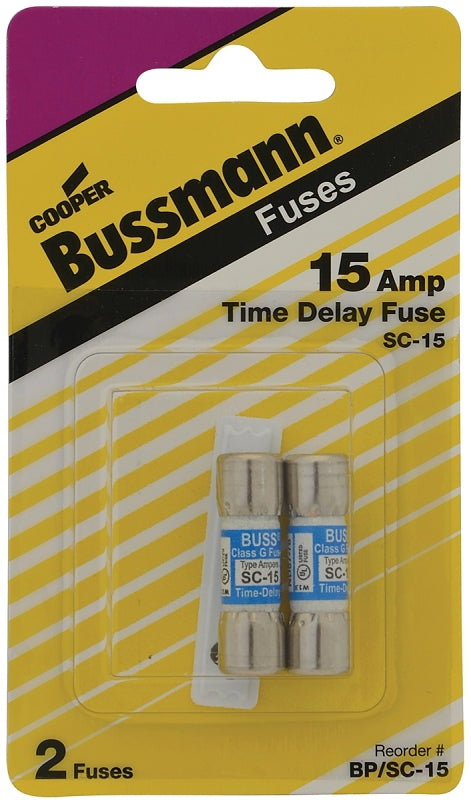

Bussmann BP/SC-15 Time Delay Fuse, 15 A, 600 VAC, 170 VDC, 10, 100 kA Interrupt, Glass Body
$22.55
$22.65
Unit price
/
Unavailable
Shipping calculated at checkout.
Bussmann BP/SC-15 Time Delay Fuse, 15 A, 600 VAC, 170 VDC, 10, 100 kA Interrupt, Glass Body is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Bussmann BP/SC-15 Time Delay Fuse, 15 A, 600 VAC, 170 VDC, 10, 100 ...
$22.55
$22.65
Unit price
/
Unavailable
Features
- Overcurrent protection solution compared to circuit breakers
- Compact branch-circuit units with high interrupt rating and current limitation
- Size rejection by length helps prevent overfusing
- Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads
- With up to a 600 V rating, they can be used in 120/208 V, 120/240 V and 277/480 V circuits
Description
Description
High interrupting rating, current limiting. Rated at 277/480, 120/208 and 120/240 V. UL Listed 100,000 AIR, RMS symmetrical AC (Glass G). 13/32 Dia fuse. Glass tube, nickel-plated brass endcaps.
Additional Information
Additional Information
- Body Material: Glass
- Current Rating: 15 A
- Diameter: 13/32 in
- Indicator Type: Non-Indicating
- Interrupt Rating: 10 100 kA
- Length: 1-5/16 in
- Rejection/Non-Rejection: Rejection
- Terminal Type: Clip
- Type: Current Limiting
- Voltage Rating: 600 VAC 170 VDC
