Bussmann | Our Item #:
DORG4877262
14% off

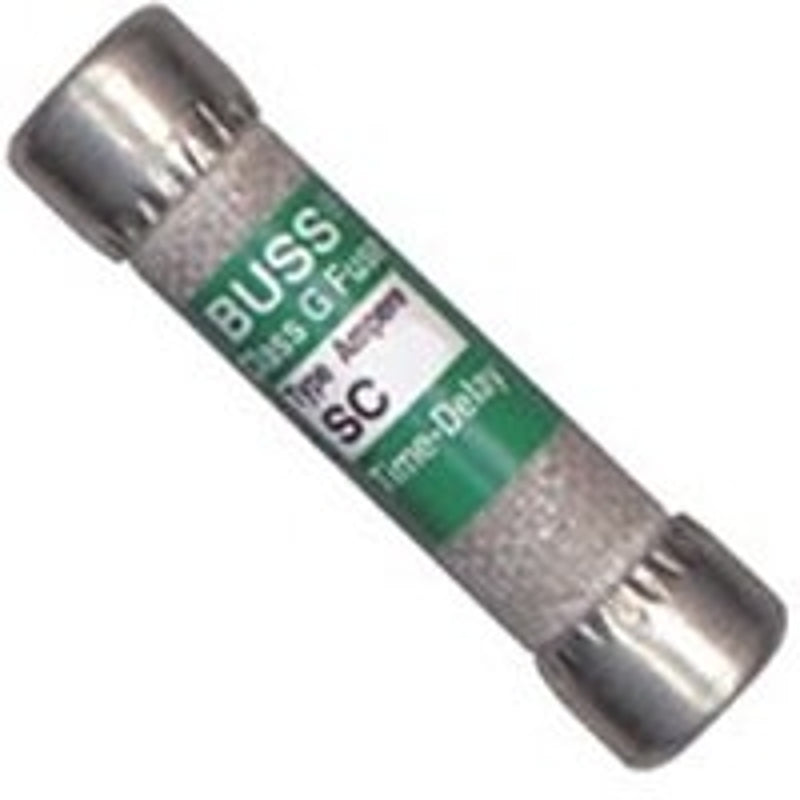

Bussmann SC-20 Fuse, 20 A, 600 VAC, 170 VDC, 100 kA Interrupt, Melamine Body, AH, Low Voltage, Time Delay Fuse
$8.50
$9.85
Unit price
/
Unavailable
Shipping calculated at checkout.
Bussmann SC-20 Fuse, 20 A, 600 VAC, 170 VDC, 100 kA Interrupt, Melamine Body, AH, Low Voltage, Time Delay Fuse is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Bussmann SC-20 Fuse, 20 A, 600 VAC, 170 VDC, 100 kA Interrupt, Mela...
$8.50
$9.85
Unit price
/
Unavailable
Features
Description
Description
They have a minimum 300 V rating and are available up to 60 A. All SC fuses are 13/32 in Dia with varying lengths to provide a rejection feature that helps prevent over fusing (installing a 30 A fuse in a 20 A circuit). One half to 6 A SC fuses are fast-acting, while 7 to 60 A SC fuses are time-delay to permit temporary overloads to pass without nuisance openings.
Additional Information
Additional Information
- Body Material: Melamine
- Current Rating: 20 A
- Diameter: 13/32 in
- Element Type: Dual
- Fuse Group: AH
- Fuse Type: Low Voltage Time Delay
- Indicator Type: Non-Indicating
- Interrupt Rating: 100 kA
- Length: 1-13/32 in
- Rejection/Non-Rejection: Rejection
- Terminal Type: Holder
- Voltage Rating: 600 VAC 170 VDC
