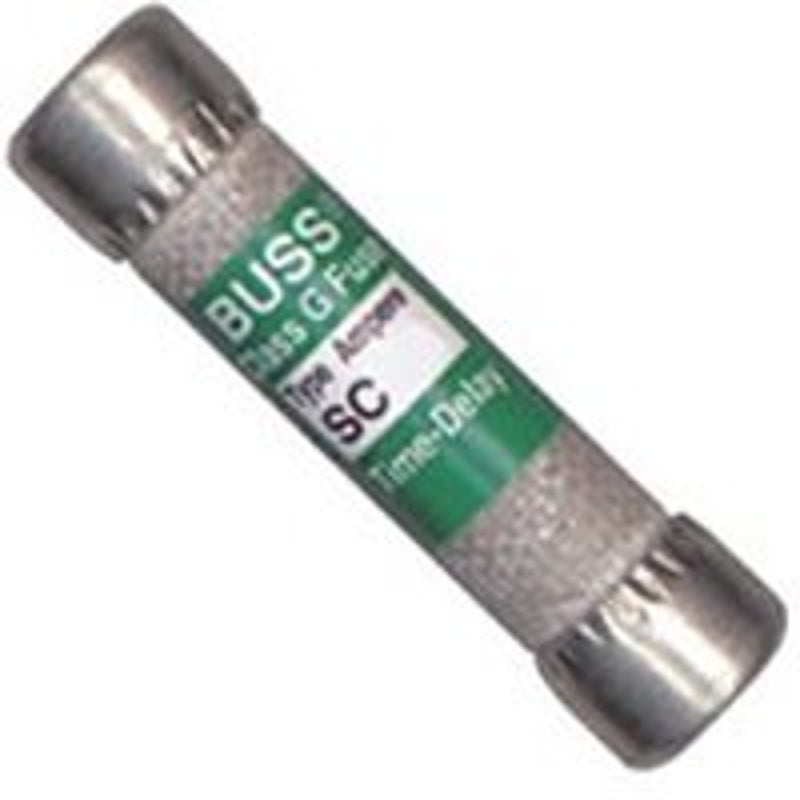

Bussmann SC-25 Fuse, 25 A, 480 VAC, 300 VDC, 100 kA Interrupt, Melamine Body, AJ, Low Voltage, Time Delay Fuse
$19.55
$19.65
Unit price
/
Unavailable
Shipping calculated at checkout.
Bussmann SC-25 Fuse, 25 A, 480 VAC, 300 VDC, 100 kA Interrupt, Melamine Body, AJ, Low Voltage, Time Delay Fuse is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Bussmann SC-25 Fuse, 25 A, 480 VAC, 300 VDC, 100 kA Interrupt, Mela...
$19.55
$19.65
Unit price
/
Unavailable
Features
For use in mobile home and industrial, residential
Description
Description
They have a minimum 300 V rating and are available up to 60 A. All SC fuses are 13/32in Dia with varying lengths to provide a rejection feature that helps prevent over fusing (installing a 30 A fuse in a 20 A circuit). One half to 6 A SC fuses are fast-acting, while 7 to 60 A SC fuses are time-delay to permit temporary overloads to pass without nuisance openings.
Unit: EA
UPC: 051712250252
Model Number: SC-25
Unit: EA
UPC: 051712250252
Model Number: SC-25
Additional Information
Additional Information
- Body Material: Melamine
- Current Rating: 25 A
- Diameter: 13/32 in
- Element Type: Dual
- Fuse Group: AJ
- Fuse Type: Low Voltage Time Delay
- Indicator Type: Non-Indicating
- Interrupt Rating: 100 kA
- Length: 1-5/8 in
- Rejection/Non-Rejection: Rejection
- Terminal Type: Holder
- Voltage Rating: 480 VAC 300 VDC
