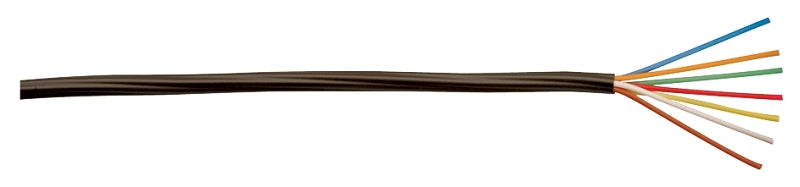

CCI 553076607 Thermostat Wire, 18 AWG Wire, 7 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath
$156.61
$225.00
Unit price
/
Unavailable
Shipping calculated at checkout.
CCI 553076607 Thermostat Wire, 18 AWG Wire, 7 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
CCI 553076607 Thermostat Wire, 18 AWG Wire, 7 -Conductor, Copper Co...
$156.61
$225.00
Unit price
/
Unavailable
Features
Description
Description
Conductor 18 AWG soft annealed solid copper per ASTM B3-90. PVC thermostatic insulation, temperature 60 deg C. Used for thermostat controls, heating and air conditioning installations, burglar alarm systems, intercom systems and doorbells. Type CL2, 150 V. PVC insulation UL13 for power limited circuit cable for other than plenum, riser or tray uses and UL1581 approved.
Additional Information
Additional Information
- Conductor Insulation: Polypropylene
- Conductor Material: Copper
- Number of Conductors: 7
- Operating Temperature: -20 to 60 deg C
- Resistance: 6.32 Ohm
- Sheath Color: Brown
- Sheath Material: PVC
- Stranded/Solid: Solid
- Type: Type CL-2
- Voltage Rating: 150 V
- Wire Size: 18 AWG
