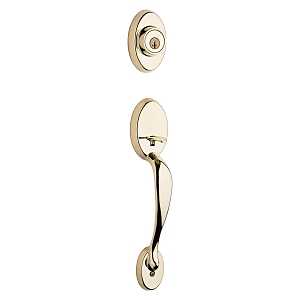

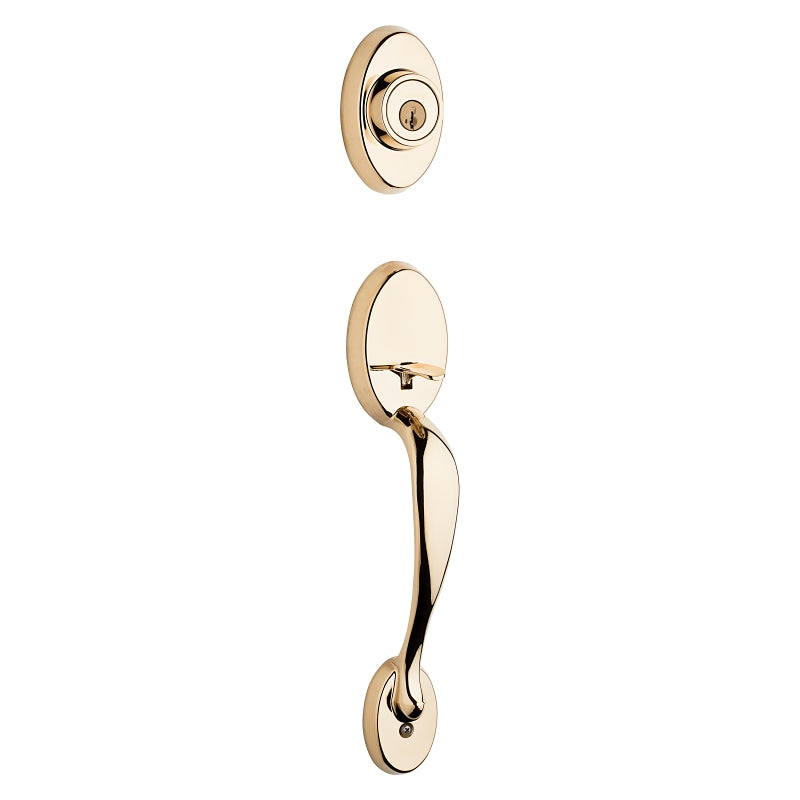

CHELSEA HSET SMT LIP P BRSS BX

Sectional handleset with single cylinder deadbolt. Latchbolt operated by thumbpiece outside and grip inside. Deadbolt operated by key outside and thumbturn inside. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: Deadbolt - adjustable to 2-3/8" or 2-3/4", Handle - adjustable to 2-3/8" or 2-3/4". DOOR THICKNESS: 1-3/4" standard. 2-1/4" optional. Not designed for use on 1-3/8"doors. CYLINDER: 6-pin. 5-pin optional. FACEPLATE: 1" x 2-1/4". STRIKE: Deadbolt - 1-1/4" x 3-5/8" round corner standard. Includes ultra-strike door jam brace with (3) 3" screws. Handle - 2-1/4" full lip round corner standard. BOLT: Deadbolt - Brass bolt, full 1" throw, Titanium alloy roller pin. Handle - 1/2" throw. Nickel plated. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 1 Deadbolt.

• Backset Size: 2-3/8 2-3/4 in
• Backset Type: Adjustable
• Commercial/Residential: Residential
• Cross Bore Diameter: 2-1/8 in
• Cylinder Type: 6-Pin
• Deadbolt Latch Throw: 1/2 in
• Design: Chelsea
• Door Handing: Reversible
• Door Thickness: 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Polished Brass
• Latch Type: Round Corner
• Number of Cylinders: 1
• Projection Size: 2-3/8 in
• Re-Key Technology: Smartkey
• Security Grade: 1
• Strike Size: 1-1/4 x 3-5/8 in
• Strike Type: Round Corner
