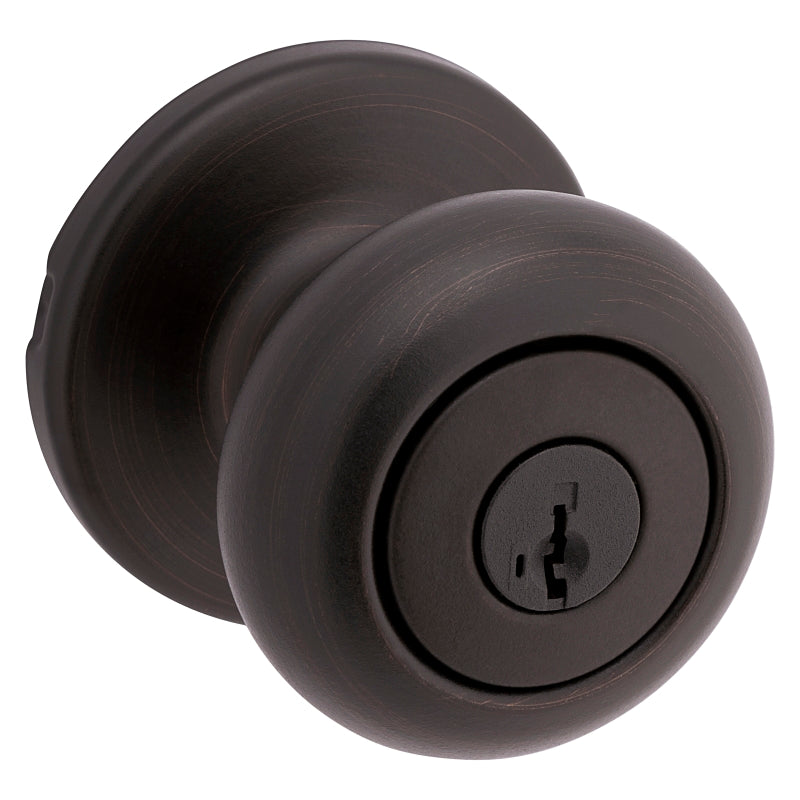

COVE ENTRY SMT VENETN BRNZE BX

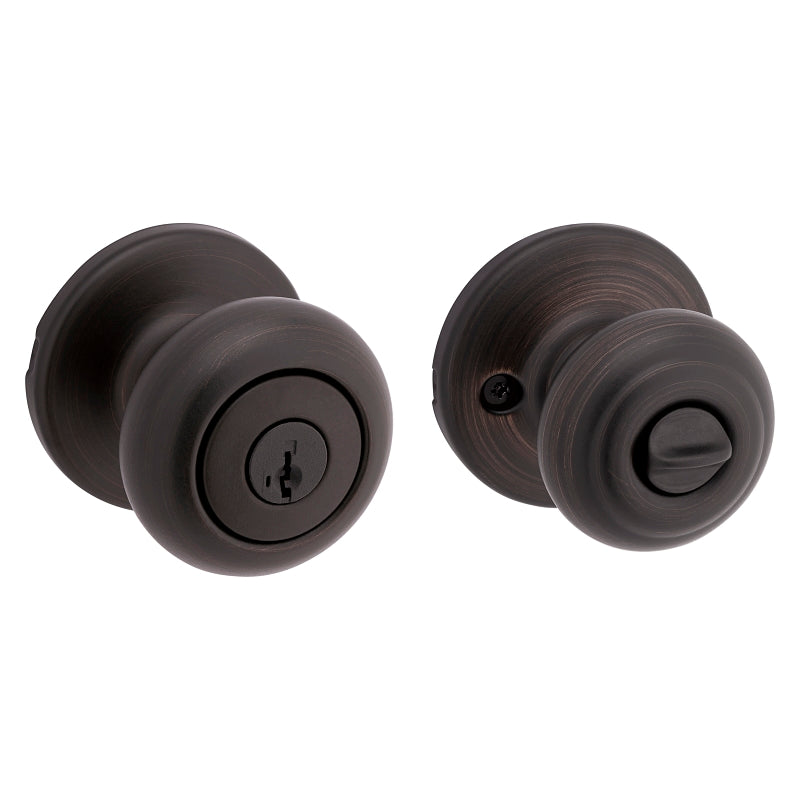

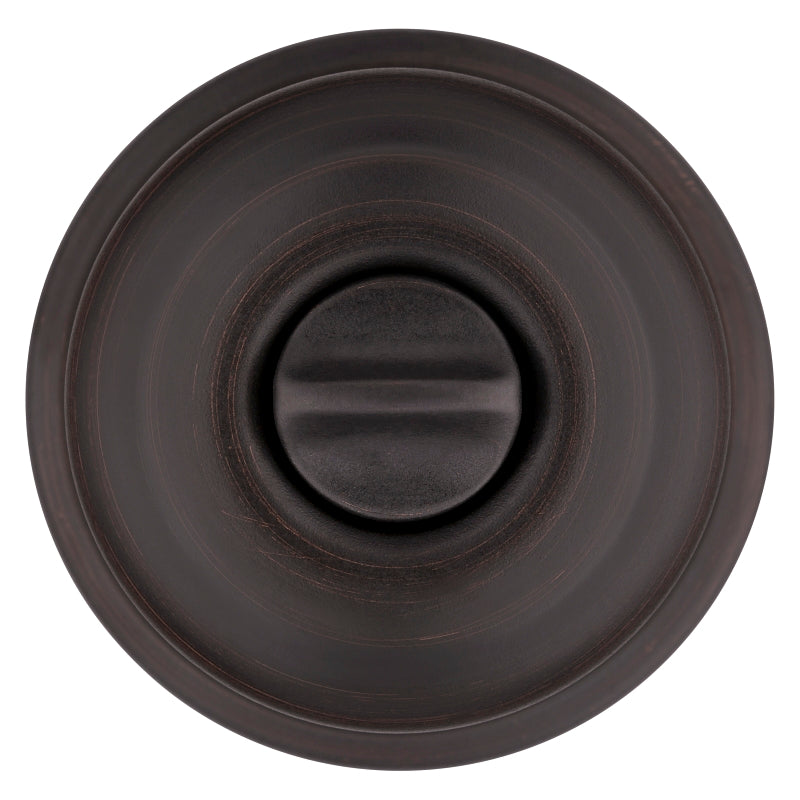

For keyed exterior doors. Both Colonial style knobs lock or unlock by key outside or turnbutton inside. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard and adjustable 2-3/8" and 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4"; 2-1/4" doors optional. CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: 2-1/4" full lip round corner. BOLT: 1/2" throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 3.

• Backset Size: 2-3/8 in
• Bolt Throw Size: 1/2 in
• Cross Bore Diameter: 2-1/8 in
• Dimensions: 2-5/8 in L x 2-1/2 in W x 2-3/16 in D
• Door Thickness: 1-3/8 to 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Venetian Bronze
• Includes: (2) Keys
• Key Type: Keyed
• Keyway Type: KW1
• Material: Metal
• Security Grade: 3
• Strike Size: 2-1/4 in
• Strike Type: Full Lip Round Corner
• Suitable for: 1-3/8 to 1-3/4 in Thick Doors
