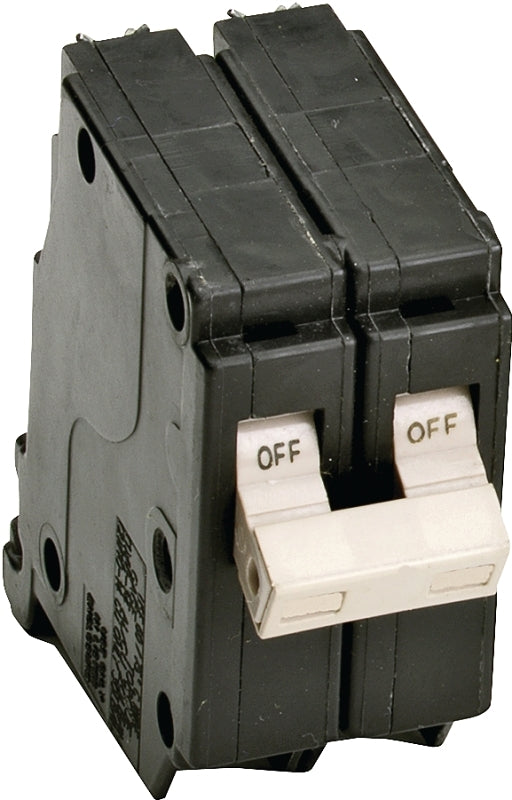

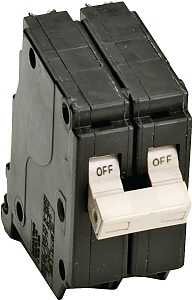

CRCUIT BREAKR CH 2P DUAL 2/15A

Quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve. #14 - 8 wire range 15 to 30 amp, #14 - 2 wire range 40 to 70 amp, #10 - 1/0 wire range 100 amp. UL Listed, HACR rated, meets NEMA standards and federal specifications, CSA certified. 120/240 volt. 10,000 AIR. 3/4" per pole.
Unit: EA
UPC: 786685361871
Model Number: CHF215

• Actuator Type: Magnetic Thermal
• Current Rating: 15 A
• Dimensions: 3 in L x 1-1/2 in W x 3-1/2 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Number of Phases: 1
• Number of Poles: 2
• Number Of Spaces: 2
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Type CH Load Centers
• Trip Type: Common
• Type: Type CH
• Voltage Rating: 120/240 V
• Wire Size: 14 to 10 14 to 8 AWG
