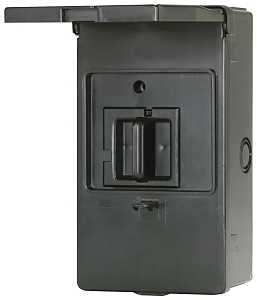

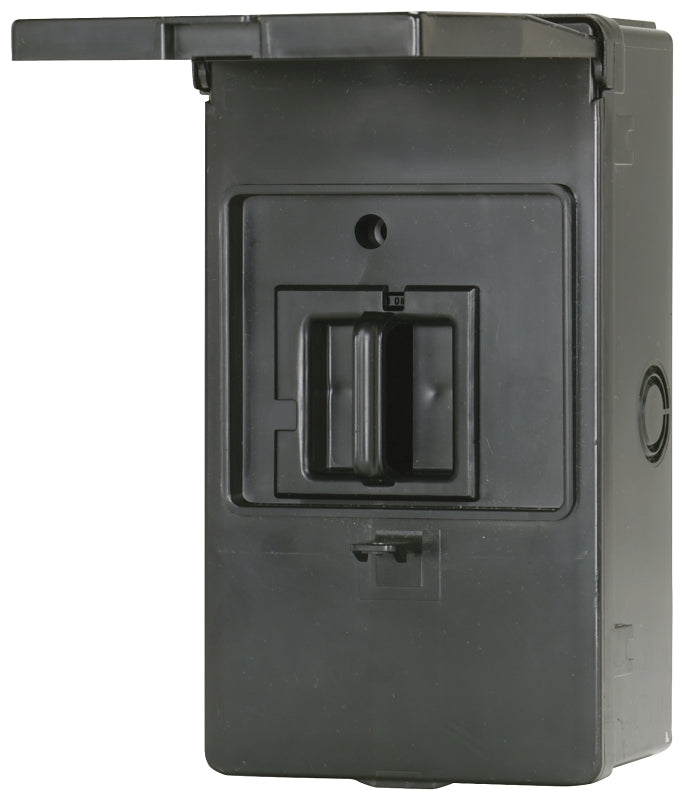

Cutler-Hammer AC ACD221RNMP Disconnect Switch, 30 A, 240 V

Single phase, 2 pole, 2 wire, 240 VAC, non-metallic enclosure. Rated 1-1/2 hp at 120 V, 3 hp at 240 V with time delay fuses (uses class H cartridge fuses, not included). For top and bottom entry and exit, with provision for type H conduit hub. Heavy-duty, high strength, rugged polymer enclosure with UV-resistant features. 10,000 A RMS symmetrical interrupting rating. Suitable for use as service entrance equipment with ground bar. No GB4 ground bar and No 360-011-24 pullout head replacement sold separately. #14-2 AWG wire range. 5 in x 8.63 in x 3-1/2 in. UL listed file No E5239.

• Current Rating: 30 A
• Enclosure Material: Polycarbonate
• Height: 10.5 in
• HP Rating: 1.5 hp
• Length: 8.69 in
• Nema Rating: NEMA 3R
• Number of Phases: 1
• Number of Poles: 2
• Number Of Wires: 2
• Type: Fused
• Voltage Rating: 240 V
• Width: 5 in
