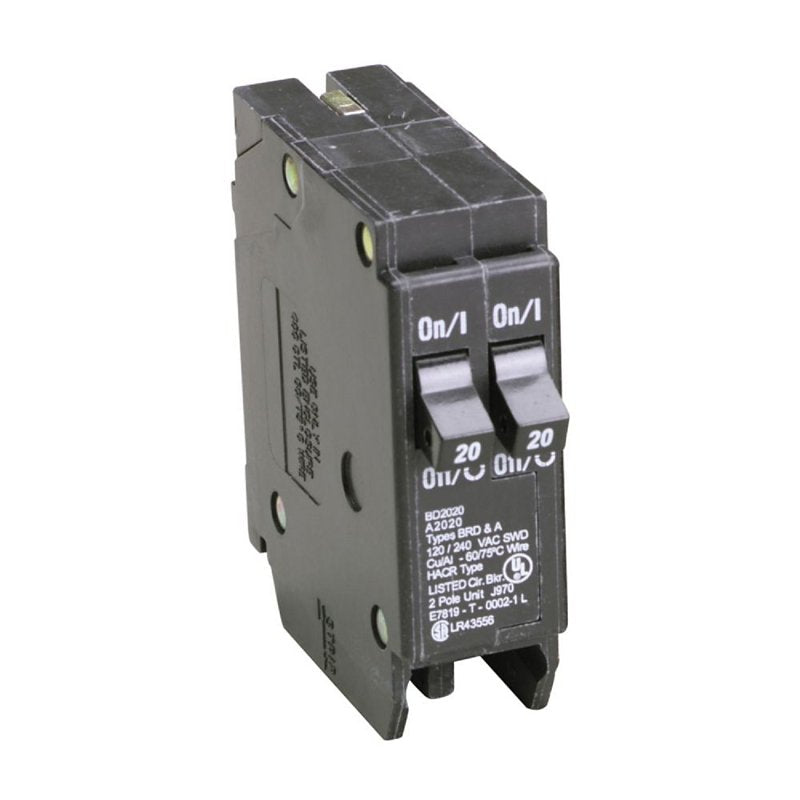

Cutler-Hammer BD2020 Circuit Breaker with Rejection Tab, Duplex, Type BD, 20 A, 1 -Pole, 120 V, Instantaneous Trip

Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker.

• Actuator Type: Magnetic Thermal
• Current Rating: 20 A
• Dimensions: 3.1 in L x 0.98 in W x 2.89 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Number Of Spaces: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 40 deg C
• Suitable for: Overload and Short Circuit Protection of Home Electrical System
• Terminal Type: Feed-Thru
• Trip Type: Instantaneous
• Type: Duplex Type BD
• Voltage Rating: 120 V
• Wire Size: 14 to 4 AWG
