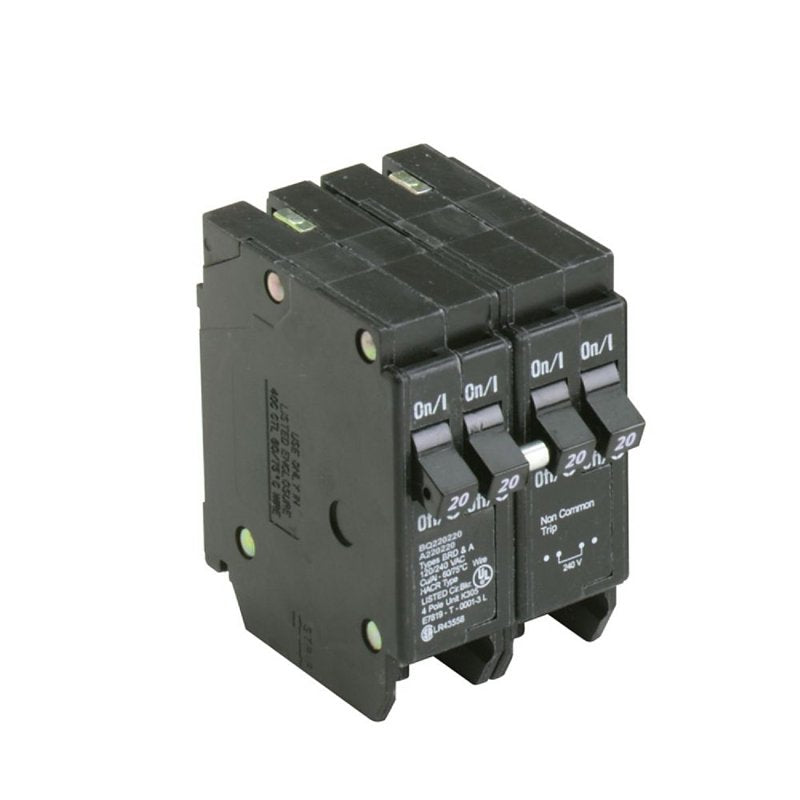

Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Type BQ, 20 A, 4 -Pole, 120/240 V, Plug Mounting
$41.34
$47.65
Unit price
/
Unavailable
Shipping calculated at checkout.
Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Type BQ, 20 A, 4 -Pole, 120/240 V, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Ty...
$41.34
$47.65
Unit price
/
Unavailable
Features
Description
Description
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
Additional Information
Additional Information
- Actuator Type: Magnetic Thermal
- Current Rating: 20 A
- Dimensions: 3.1 in L x 1.97 in W x 2.89 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 4
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Terminal Type: Feed-Thru
- Type: Quad Type BQ
- Voltage Rating: 120/240 V
- Wire Size: 14 to 4 AWG
