Cutler-Hammer | Our Item #:
DORG6065510
13% off

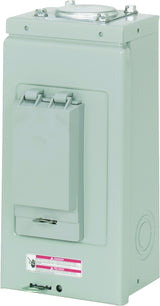

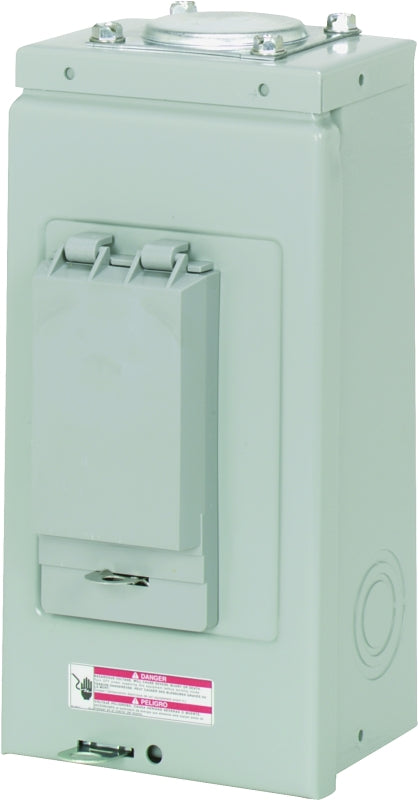

Cutler-Hammer CH CH2L70RP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure
$58.68
$67.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Cutler-Hammer CH CH2L70RP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Cutler-Hammer CH CH2L70RP Load Center, 70 A, 2 -Space, 4 -Circuit, ...
$58.68
$67.55
Unit price
/
Unavailable
Features
- Panels are supplied with split insulated neutrals with an insulated cross strap
- For service entrance applications, the neutral must be bonded by using the bonding strap supplied with the panel
- For service entrance applications, all that is required to bond the neutral is to loosen the bonding screw and the neutral screw directly beside it, insert the bonding strap into the neutral bar and retighten both connections
Description
Description
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Copper
- Cable Size: 14 to 2 AWG
- Current Rating: 70 A
- Enclosure Type: NEMA 3R
- Interrupt Rating: 10 kA
- Number of Circuits: 4
- Number of Phases: 1
- Number Of Spaces: 2
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
