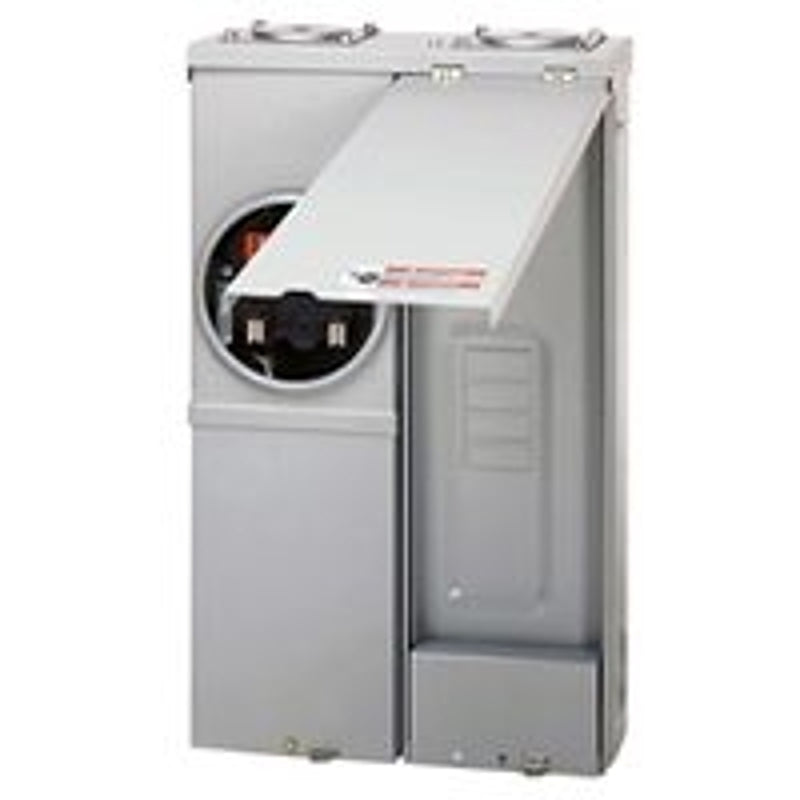

Cutler-Hammer MBE24L125BTS Meter Breaker, 125 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure

A meter breaker is service entrance equipment that consists of a single meter socket and load center (circuit breaker distribution section) or meter socket and main breaker combined in one enclosure. Sometimes called combos, all-in-ones, meter centers or meter mains these units are increasing in popularity as the socket and load center or main breaker are located in one location, thus providing the contractor with a labor and material savings when installing.

• Breaker/Load Center Type: Main Lug
• Bus Bar Material: Aluminum
• Cable Size: 14 to 2/0 AWG
• Current Rating: 125 A
• Enclosure Type: NEMA 3R
• Interrupt Rating: 10 kA
• Mounting Type: Surface
• Number of Circuits: 4
• Number of Phases: 1
• Number Of Spaces: 2
• Voltage Rating: 120/240 V
• Wiring Configuration: 3-Wire
