Dutton-Lainson | Our Item #:
DORG6547814
13% off

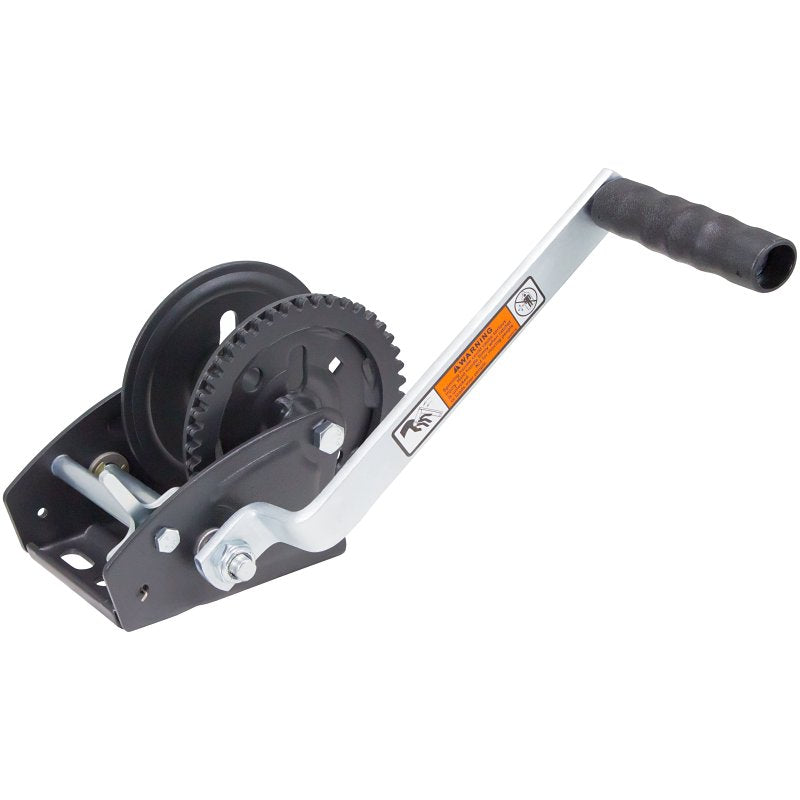

DL DL1402A Pulling Winch, 1400 lb Pull, 1/4 in Dia Wire Rope, 40 ft L Wire Rope, 4.40:1 Gear Ratio
$60.08
$69.15
Unit price
/
Unavailable
Shipping calculated at checkout.
DL DL1402A Pulling Winch, 1400 lb Pull, 1/4 in Dia Wire Rope, 40 ft L Wire Rope, 4.40:1 Gear Ratio is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
DL DL1402A Pulling Winch, 1400 lb Pull, 1/4 in Dia Wire Rope, 40 ft...
$60.08
$69.15
Unit price
/
Unavailable
Features
Description
Description
Reinforced arc-welded reels, embossed, reinforced bases, high carbon steel gears throughout. Heavy steel handles have molded grips. All drive shafts have permanently lubricated bearings. Load matched gear ratios for easier cranking, hunting tooth gears system. Frees wheel when ratchet is disengaged. Base plates fit BIA Standard mounting hole pattern for easy installation. Equipped with holes in reel for easy installation of web strap. Powder-coated metallic copper bronze finish. Not for movement of human beings.
Unit: EA
UPC: 085077153019
Model Number: DL1402A
Unit: EA
UPC: 085077153019
Model Number: DL1402A
Additional Information
Additional Information
- Control Type: Handle
- Dimensions: 5-1/8 in L x 5-1/4 in W
- Gear Ratio: 4.401
- Gear Type: Spur
- Material: Steel
- Pull Capacity: 1400 lb
- Wire Rope Diameter: 1/4 in
- Wire Rope Length: 40 ft
