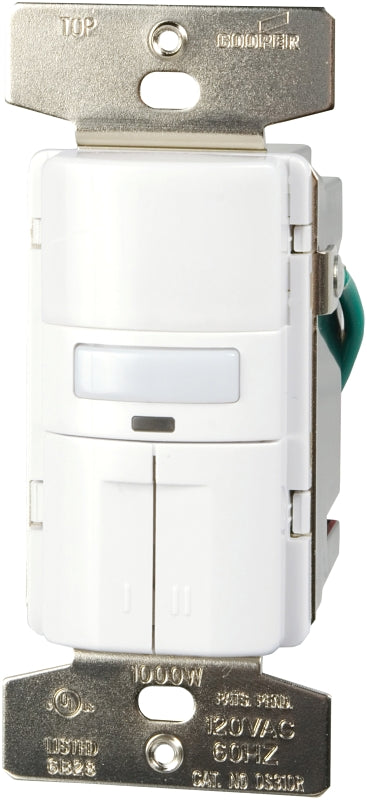

Eaton Wiring Devices OS310R-C2-K Motion Sensor Switch with Dual Relay, 120 V, 1 -Pole, Occupancy Sensor
$60.16
$69.25
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices OS310R-C2-K Motion Sensor Switch with Dual Relay, 120 V, 1 -Pole, Occupancy Sensor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Features
- Passive Infrared technology
- Selectable on/off LED nightlight with press and hold dimming function
- Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Selectable time delay of 5 sec test, 5 min, 15 min and 30 min for lights to remain on after room is vacated
- Selectable ambient light override when there is acceptable natural light
- Uniform color matched PIR lens to device housing
- Bypass feature to allows the sensor to perform as a traditional switch
- Mid-size decorator wallplate included with product
Description
Description
Occupancy/vacancy sensor dual switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-on/auto-off or manual-on/auto-off operation while vacancy sensors provide manual-on/auto-off operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. The dual switch feature allows for control of two different loads from a single location. Both versions provide single-pole (single-location) and three-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.
Additional Information
Additional Information
- Finish: Gloss
- Frequency Rating: 60 Hz
- Lamp Type: CFL Electronic Low Voltage Fluorescent Halogen Incandescent LED Magnetic Low Voltage
- Material: Polycarbonate
- Number of Poles: 1
- Sensing Angle: 180 deg
- Sensor Type: Occupancy
- Temperature Rating: 32 to 104 deg F
- Timer Range: 5 sec to 30 min
- Voltage Rating: 120 V
- Wattage Rating: 1000 W
