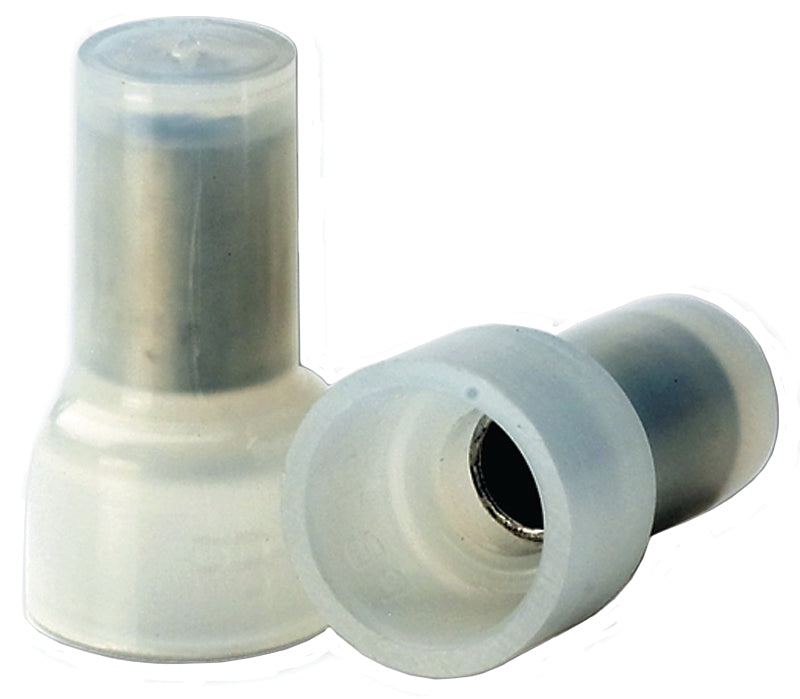

Gardner Bender 20-089 Crimp Connector, 22 to 14 AWG Wire, Copper Contact, Nylon Housing Material, White, 10/PK

Closed end connectors are ideal for making a simple connection of two or more wires to create a pigtail connection. The pigtail connector is a closed end, crimp on wire connector used to secure electrical connection points. The proper installation method is to connect the wires together first and then add a pigtail connector and crimp tight to provide a safe, secure and stable connection particularly in applications subject to vibration. Designed to be used with both solid and stranded wire these closed end connectors feature a tin-plated seamless copper sleeve with translucent nylon insulation. Connector rated for #22 to #14 AWG applications up to 300 V with a minimum 2 to #22 and maximum 1 #14 w/1 #18.

• Color: White
• Contact Coating: Tin
• Contact Material: Copper
• Height: 4.38 in
• Housing Material: Nylon
• Length: 0.63 in
• Voltage Rating: 300 V
• Width: 1/4 in
• Wire Size: 22 to 14 AWG
