Gb  |  Our Item #: DORG6110126  |  UPC: 032076100025

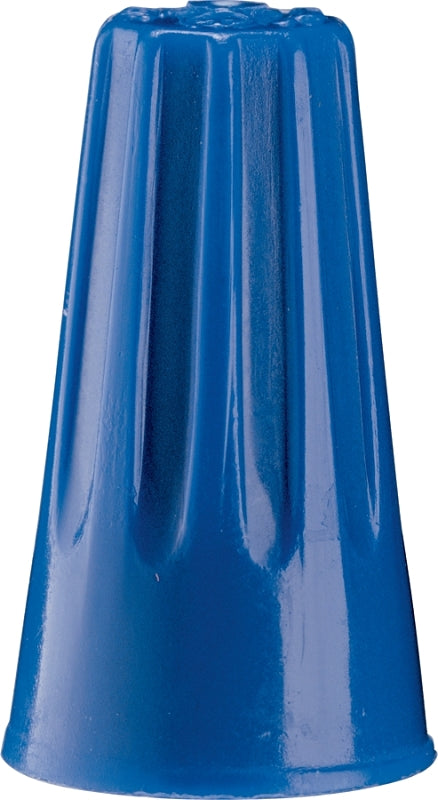

Gardner Bender WireGard GB-2 Series 10-002 Wire Connector, Blue, 22 to 16 AWG Wire, Steel Contact, 100/BX

$9.88 $9.95
Shipping calculated at checkout.


Delivery and Shipping

Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.

Features

  • Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
  • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
  • Flame-retardant properties resist heat distortion up to 221 deg F
  • High-dielectric shell features deep skirt design to prevent exposure of bare wire
  • Rated at 300 V max
  • Copper to copper connections only

Description

The industry's standard twist-on connector with quality performance and durability. GB specifies this connector for a wire range of 22 to 16 AWG and recommends a wire combination of min (3) #22 wire and max (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.
Unit: BX100
UPC: 032076100025
Model Number: 10-002

Additional Information

  • Color: Blue
  • Contact Coating: Zinc
  • Contact Material: Steel
  • Height: 4.33 in
  • Housing Material: Polypropylene
  • Length: 25/64 in
  • Mounting Type: Screw
  • Voltage Rating: 300 V
  • Width: 25/64 in
  • Wire Size: 22 to 16 AWG
