Ge | Our Item #:
DORG6121941
14% off

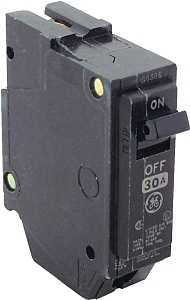

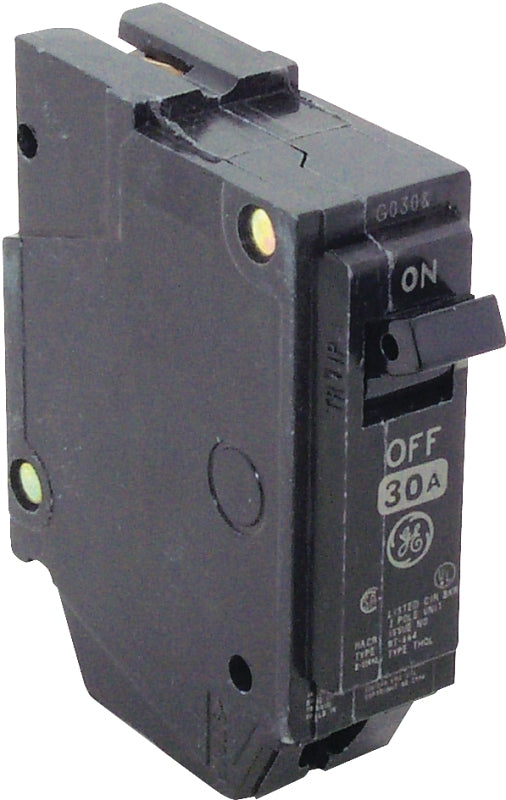

GE THQL1130 Feeder Circuit Breaker, Type THQL, 30 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug
$7.91
$9.15
Unit price
/
Unavailable
Shipping calculated at checkout.
GE THQL1130 Feeder Circuit Breaker, Type THQL, 30 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
GE THQL1130 Feeder Circuit Breaker, Type THQL, 30 A, 1-Pole, 120/24...
$7.91
$9.15
Unit price
/
Unavailable
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Description
Description
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A. 14 to 8 Cu or 12 to 8 Al AWG wire. 35 to 60 A. 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V.
Additional Information
Additional Information
- Actuator Type: Quick-Make Quick-Break
- Current Rating: 30 A
- Dimensions: 3.28 in L x 1 in W x 2.38 in H
- Frame Type: Q-Line
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Suitable for: Reverse Feed
- Terminal Type: Screw Clamp
- Trip Type: Non-Interchangeable
- Type: Type THQL
- Voltage Rating: 120/240 V
- Wire Size: 14 to 8 12 to 8 AWG
