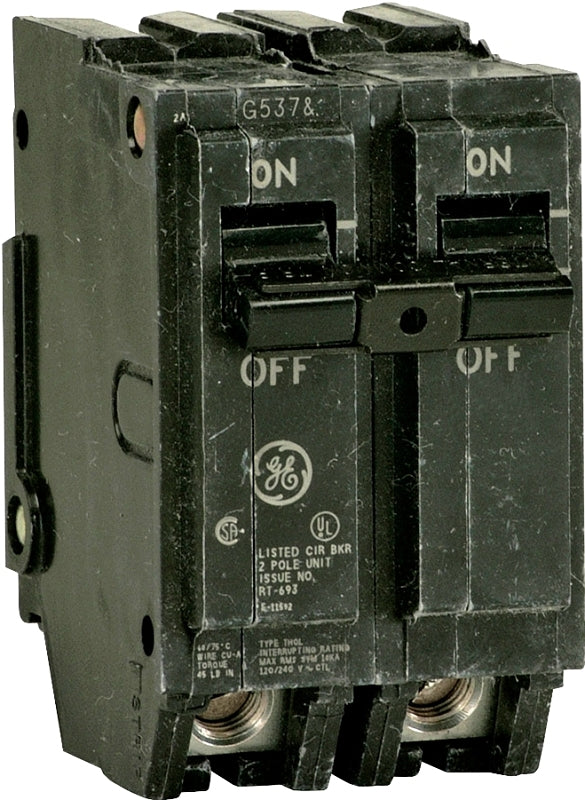

GE THQL2150 Feeder Circuit Breaker, Type THQL, 50 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).

• Actuator Type: Quick-Make Quick-Break
• Current Rating: 50 A
• Dimensions: 3.28 in L x 2 in W x 2.38 in H
• Frame Type: Q-Line
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 2
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Reverse Feed
• Terminal Type: Lug
• Trip Sensitivity: 500 A
• Trip Type: Non-Interchangeable
• Type: Type THQL
• Voltage Rating: 120/240 V
• Wire Size: 8 to 3 8 to 2 AWG
