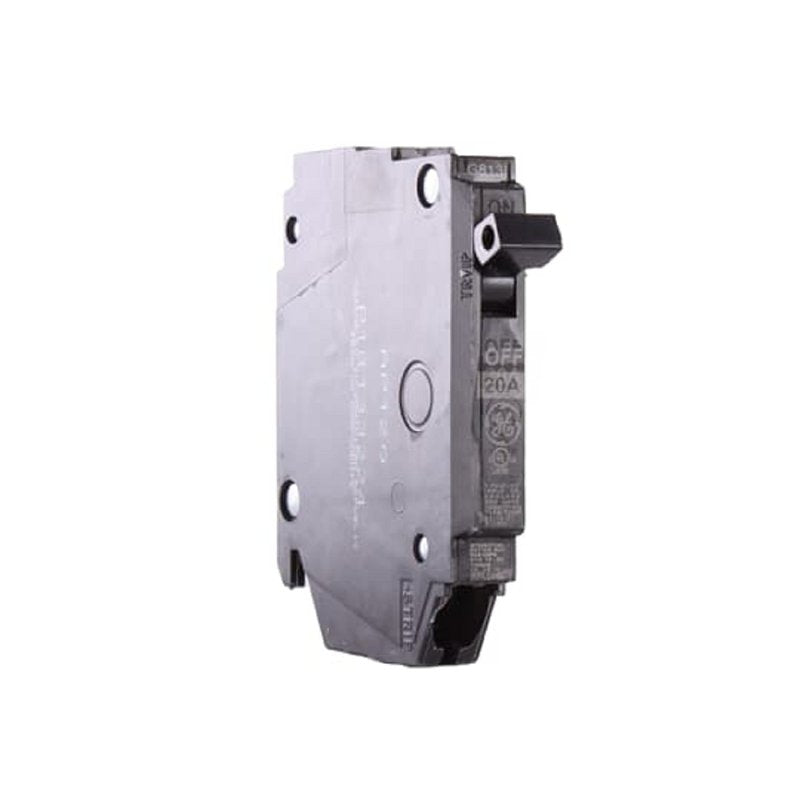

GE THQP120 Feeder Circuit Breaker, Type THQP, 20 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.

• Actuator Type: Toggle
• Current Rating: 20 A
• Dimensions: 3.28 in L x 0.5 in W x 2.58 in H
• Frame Type: Q-Line
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Reverse Feed
• Terminal Type: Lug
• Trip Type: Non-Interchangeable
• Type: Type THQP
• Voltage Rating: 120/240 V
• Wire Size: 14 to 8 12 to 8 AWG
