Ge | Our Item #:
DORG6122287
14% off

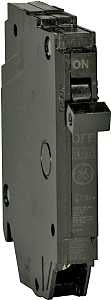

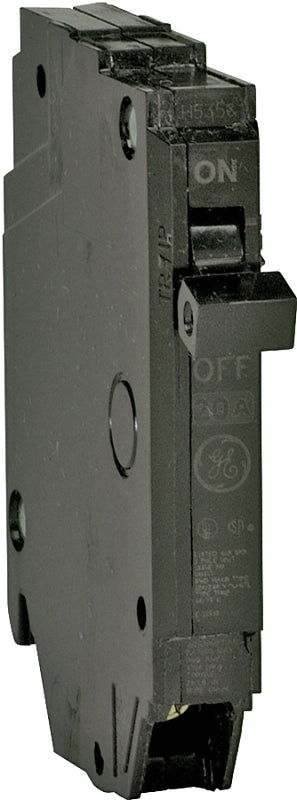

BREAKER CIRCUT BLACK 1POLE 30A
$7.91
$9.15
Unit price
/
Unavailable
Shipping calculated at checkout.
BREAKER CIRCUT BLACK 1POLE 30A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
BREAKER CIRCUT BLACK 1POLE 30A
$7.91
$9.15
Unit price
/
Unavailable
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Description
Description
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
Additional Information
Additional Information
- Actuator Type: Toggle
- Current Rating: 30 A
- Dimensions: 3.28 in L x 0.5 in W x 2.58 in H
- Frame Type: Q-Line
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Suitable for: Reverse Feed
- Terminal Type: Lug
- Trip Type: Non-Interchangeable
- Type: Type THQP
- Voltage Rating: 120/240 V
- Wire Size: 8 to 4 AWG
