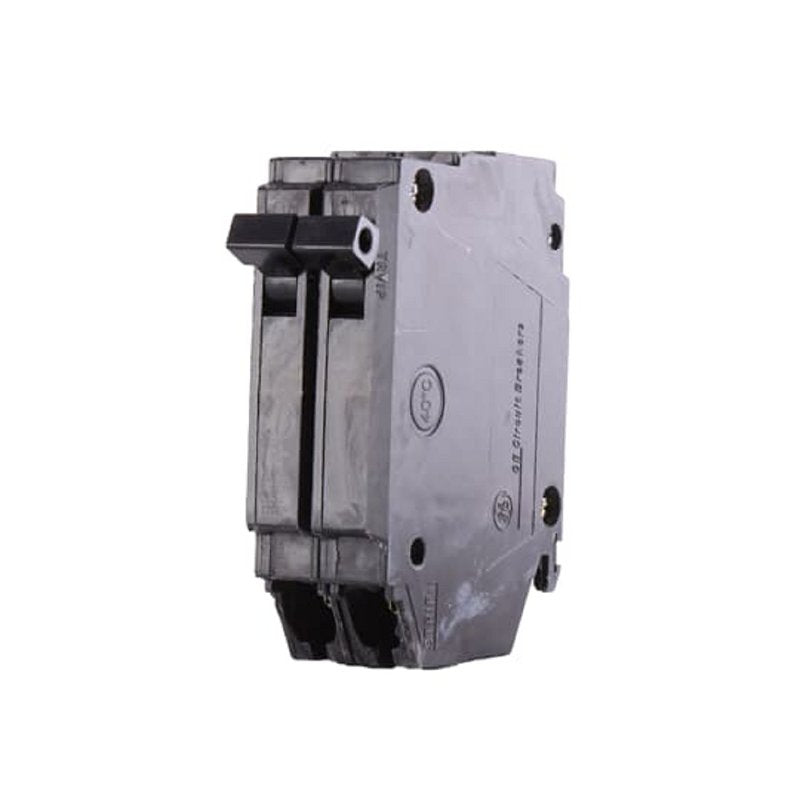

GE THQP230 Feeder Circuit Breaker, Type THQP, 30 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug
$18.59
$21.45
Unit price
/
Unavailable
Shipping calculated at checkout.
GE THQP230 Feeder Circuit Breaker, Type THQP, 30 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
GE THQP230 Feeder Circuit Breaker, Type THQP, 30 A, 2-Pole, 120/240...
$18.59
$21.45
Unit price
/
Unavailable
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Description
Description
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
Additional Information
Additional Information
- Actuator Type: Toggle
- Current Rating: 30 A
- Dimensions: 3.28 in L x 1 in W x 2.58 in H
- Frame Type: Q-Line
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 2
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Suitable for: Reverse Feed
- Terminal Type: Lug
- Trip Type: Non-Interchangeable
- Type: Type THQP
- Voltage Rating: 120/240 V
- Wire Size: 8 to 4 AWG
