Woods/Iron Horse | Our Item #:
DORG2766236
13% off

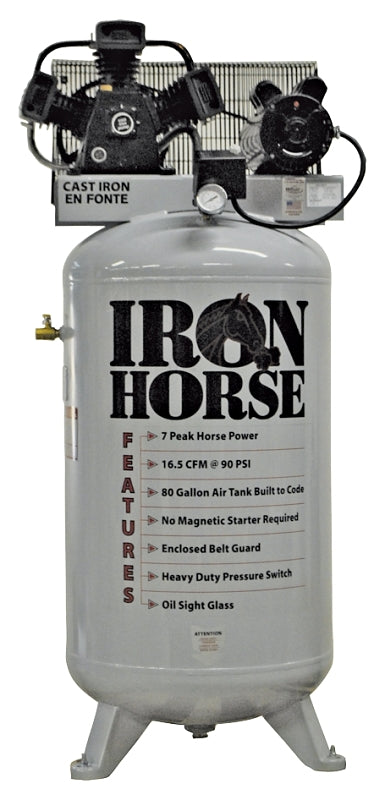

Iron Horse IHD7180V1 Air Compressor, 80 gal Tank, 7 hp, 208/230 V, 90 psi Pressure, 1-Stage, 16.5 cfm Air
$2,343.04
$2,694.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Iron Horse IHD7180V1 Air Compressor, 80 gal Tank, 7 hp, 208/230 V, 90 psi Pressure, 1-Stage, 16.5 cfm Air is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Iron Horse IHD7180V1 Air Compressor, 80 gal Tank, 7 hp, 208/230 V, ...
$2,343.04
$2,694.55
Unit price
/
Unavailable
Features
- Rugged three-cylinder cast iron compressor
- V-style design minimizes vibration, improves cooling and extends compressor life
- Individual and removable cylinders for smoother cooler operation and easy maintenance
- No magnetic motor starter required
- Heavy-duty pressure switch with on/off control
- Thermally protected 7 hp (peak) 208/230 V electric motor
- Easy view oil sight gauge
- High-efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel for cooler running and longer life
- Sturdy metal belt guard
Description
Description
Features a 3-piston "V" style cast iron pump for longer life. Produces 16.5 cfm at 90 psi with a max pressure of 150 psi. No magnetic starter required. Oil sight glass. Enclosed belt guard. Heavy-duty pressure switch. ASME certified tank that meets the national pressure vessel certifications.
Additional Information
Additional Information
- Air Flow Rate: 16.5 cfm
- Dimensions: 28 in L x 24 in W x 64 in H
- HP Rating: 7 hp
- Includes: 1/2 in Heavy-Duty Ball Valve
- Material: Cast Iron
- Number of Phases: 1
- Number of Stages: 1
- Pressure Rating: 90 psi
- Tank Capacity: 80 gal
- Tank Type: Vertical
- Voltage Rating: 208/230 V
