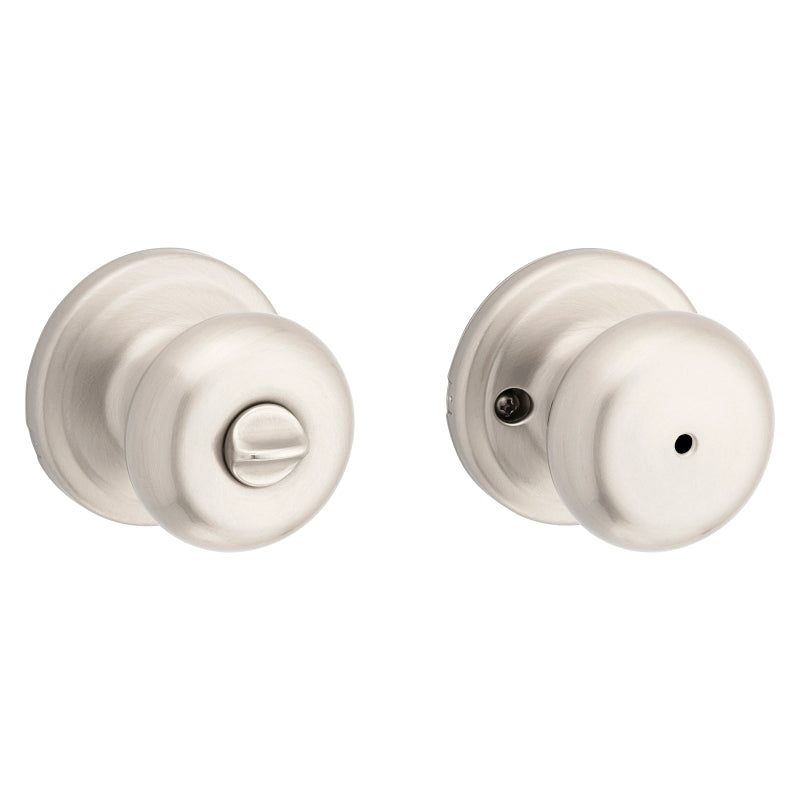

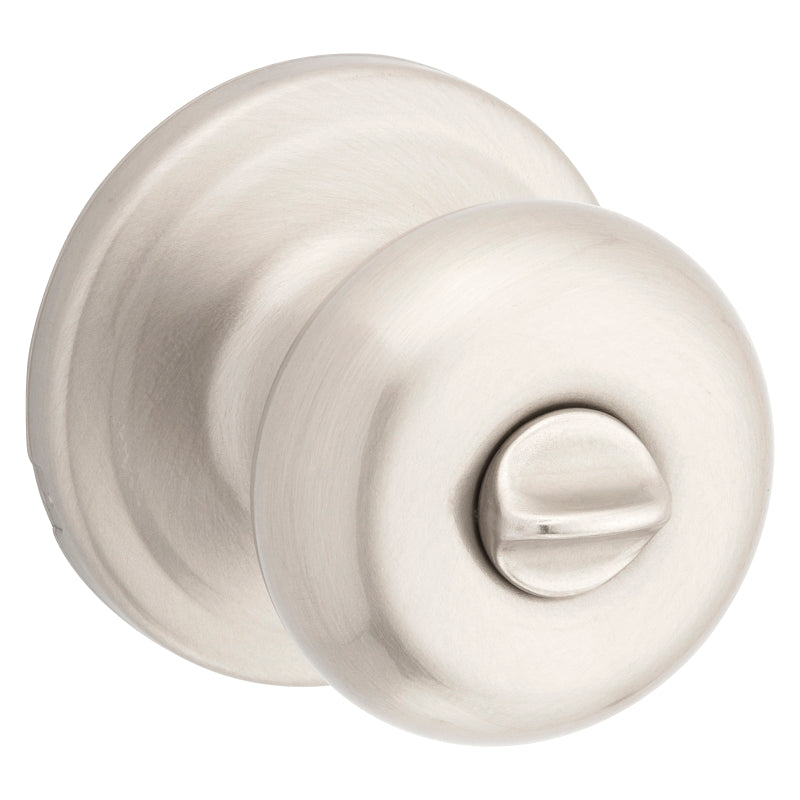

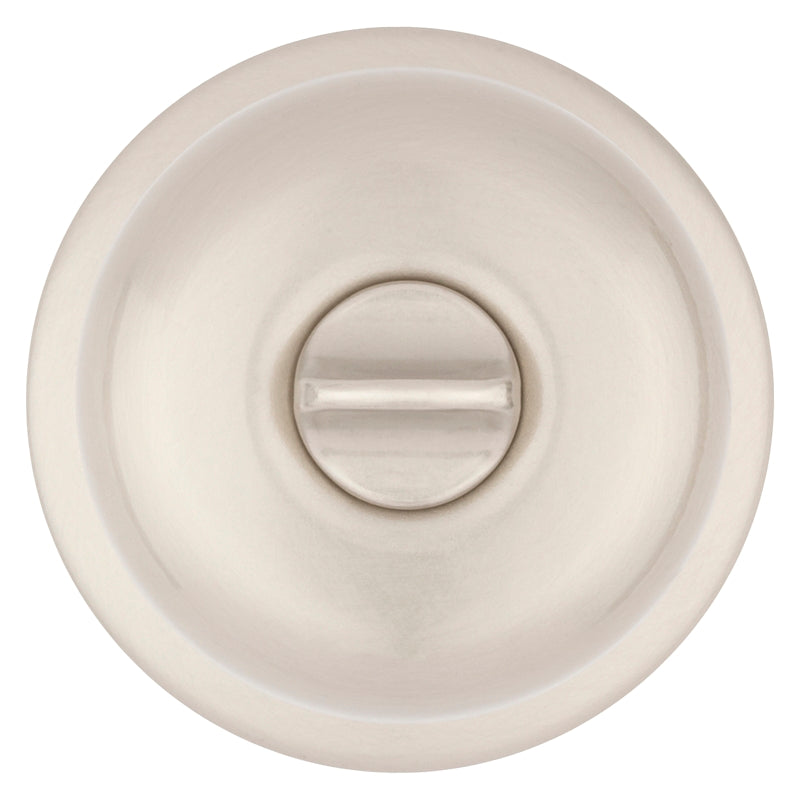

JUNO PRIVACY SATIN NICKEL

For bedroom and bathroom doors. Both knobs locked or unlocked by turnbutton inside. Outside knob unlocks by emergency key. Features titanium alloy throwbolt core, anti-pick 6 pin system and ultra-strike for jamb brace. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" - 2-3/4" adjustable. DOOR THICKNESS: 1-3/4" doors standard. 2-1/4" doors optional. CYLINDER: 6-pin removable core. 5-pin optional. FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1" throw. Nickel plated. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 2.

• Backset Size: 2-3/8 x 2-3/4 in
• Bolt Throw Size: 1/2 in
• Cross Bore Diameter: 2-1/8 in
• Cylinder Type: 5-Pin
• Door Handing: Reversible
• Door Thickness: 1-3/8 to 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Satin Nickel
• Re-Key Technology: Smartkey
• Security Grade: 2
• Strike Size: 2-1/4 in
• Strike Type: Full Lip
• Suitable for: Bedroom Bathroom Doors
