Oatey | Our Item #:
DORG8023533

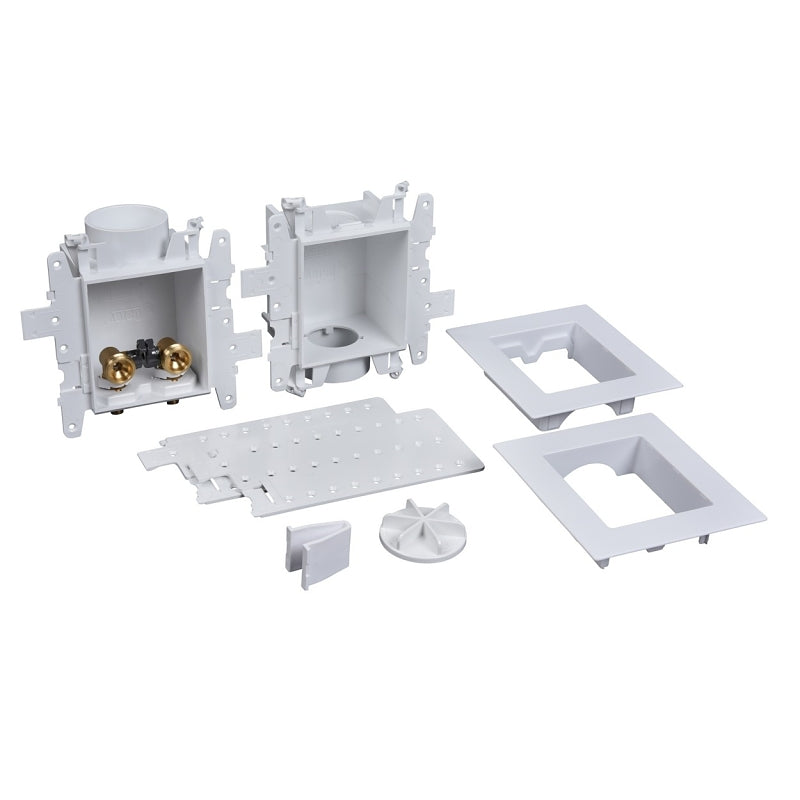

Oatey 37603 Washing Machine Connection Box, PVC, 1/2 in
$43.41
$43.49
Unit price
/
Unavailable
Shipping calculated at checkout.
Oatey 37603 Washing Machine Connection Box, PVC, 1/2 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Oatey 37603 Washing Machine Connection Box, PVC, 1/2 in
$43.41
$43.49
Unit price
/
Unavailable
Features
- Using a single box platform provides significant convenience to installers
- Unique interlocking wing flanges accommodate on-stud, straddle-stud and three box installations
- Advanced snap lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply and drain crossovers
- Dual box design provides ideal options for stacked washer, dryers and space limited laundry rooms
- Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- Two-piece valve design makes valve replacement easy to repair, without damaging drywall
- Valves rated to 150 psi air and 250 psi water
Description
Description
MODA Supply box system is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent air admittance valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA Supply box system is the ultimate solution for speed and flexibility. Oatey MODA washing machine outlet boxes shall be used in residential or commercial applications requiring supply valves and a waste drain recessed in the wall. The MODA washing machine assembly contains a valve box and a drain box, connected by inter-locking wing flanges that can be easily disassembled and re-assembled. The inter-locking wing flanges shall allow installation on a single stud, between two studs or on separate walls, without the need for additional components. Valves shall be a two-piece design, permitting field replacement and shall be secured with a stainless steel retention clip. Valves are available with or without water hammer arrestors and shall be installed upright or inverted. The assembly shall include a removable quarter-turn plug for DWV testing and shall include an emergency drain port for added protection from hose leaks.
Additional Information
Additional Information
- Connection Size: 1/2 in
- Includes: (2) Faceplate (2) Side Bracket (2) Sticker Cover (1) Center Support (1) Test Plug
- Length: 14.13
- Material: PVC
- Valve Type: Dual-Lever
- Width: 3.38
