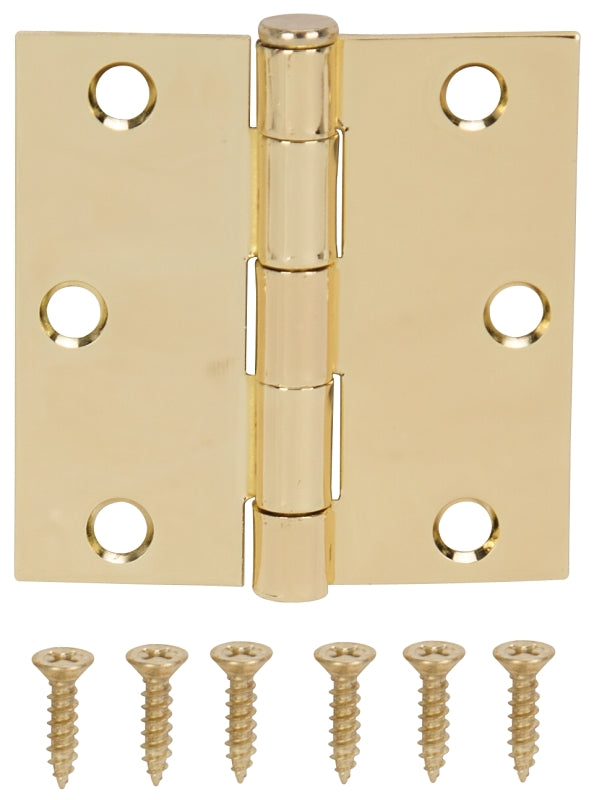

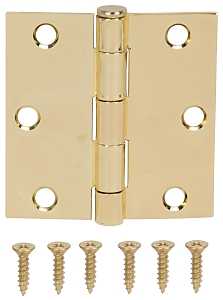

ProSource LR-705-PS Square Corner Door Hinge, 3 in H Door Leaf, 1-1/4 in W Door Leaf, 2.2 mm Thick Door Leaf, 3 x 3 in

A creaking door at your place, don't get too worked up about it since there is a remedy to that. Those days of creaking or breaking hinges are over with this hinge - the door control hinge you need. It's great for interior and exterior applications. Suitable to use on all non-commercial interior, exterior doors or wood furniture, this corner hinge is the best. With this hinge, you are getting a high-quality fitting. This hinge can hold a light to medium weighted doors. You have to do very little maintenance. Overall, it s well with most types of doors and better with aluminum ones. Once installed, this hinge makes the opening of doors very easy.
Unit: BAG
UPC: 045734647503
Model Number: LR-705-PS

• Color: Brass
• Dimensions: 3 x 3 in
• Door Leaf Height: 3 in
• Door Leaf Thickness: 2.2 mm
• Door Leaf Width: 1-1/4 in
• Door Thickness: 1-1/2 in
• Finish: Polished Brass
• Hole Spacing: 1-1/8 in
• Includes: Screws
• Knuckle Diameter: 6.3 mm
• Knuckle Length: 16 mm
• Material: Steel
• Mounting Hole Diameter: 6 mm
• Mounting Type: Screw Mount
• Number of Knuckles: 5
• Number of Mounting Holes: 6
• Pin Diameter: 5.5 mm
• Pin Type: Loose
• Range of Motion: 180 deg
