Prosource | Our Item #:
DORG7411903
13% off
ProSource Y360CV-PS Entry Lever, Stainless Steel, Lever Handle, Stainless Steel, Commercial, 2 Grade
$53.42
$61.49
Unit price
/
Unavailable
Shipping calculated at checkout.
ProSource Y360CV-PS Entry Lever, Stainless Steel, Lever Handle, Stainless Steel, Commercial, 2 Grade is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
ProSource Y360CV-PS Entry Lever, Stainless Steel, Lever Handle, Sta...
$53.42
$61.49
Unit price
/
Unavailable
Features
- Schlage SC1 6-pin keyway
- Commercial or heavy-duty residential security
- UL 3 hr fire rating
- For commercial buildings
Description
Description

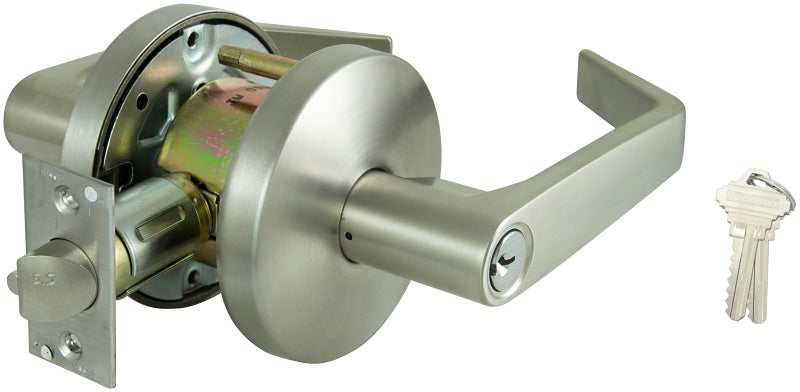

ProSource Door Entry Lever is used for a keyed exterior door. Both levers lock or unlock by key outside or turn button inside. Consist of all-metal components. Specifications : ANSI Grade: 2, Backset Size: 2-3/4 in, Edge Bore Diameter: 1 in, Cross Bore Diameter: 2-1/8 in, Thk doorness: 1-3/8 to 1-13/16 in., Cylinder Type: 6-Pin, Keyway Type: SC1, Key Type: Keyed Different, Latch Type: Square Corner, Faceplate Size: 1-1/8 x 2-3/4 in, Strike Type: T-Style, Strike Size: 1-1/8 x 2-3/4 in, Bolt Throw Size: 12.5 mm, Stainless steel.
Additional Information
Additional Information
- Backset Size: 2-3/4 in
- Backset Type: Fixed
- Bolt Throw Size: 12.5 mm
- Color: Silver
- Commercial/Residential: Commercial
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 6-Pin
- Door Thickness: 1-3/8 to 1-13/16 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1-1/8 x 2-3/4 in
- Finish: Stainless Steel
- Handle Type: Lever
- Key Type: Different
- Keyway Type: SC1
- Latch Type: Square Corner
- Material: Stainless Steel
- Mounting Type: Screw
- Number of Cylinders: 1
- Security Grade: 2
- Strike Size: 47 x 125.6 45.4 x 70 mm
- Strike Type: ASA T-Style
- Throw Length: 12.5 mm
