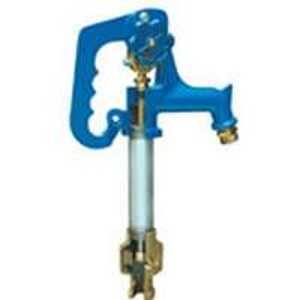

Simmons 800LF Series 802LF Yard Hydrant, 54 in OAL, 3/4 in Inlet, 3/4 in Outlet, 120 psi Pressure

The Frostproof yard hydrant provides running water for lawn and garden, livestock and fire protection all year, even in sub-zero temperatures. The shut-off valve operates below the frost line. Hydrant cannot freeze because when it is closed, all water in the standpipe drains out a hole in the valve which is set in the ground below the frost line. Hydrant spout operates at a convenient height (24 in) from the ground level so that it can spill into a stock tank. Adapter (No 8828) is threaded for 3/4 in hose. Hydrant can be easily installed anywhere water is supplied under pressure. To prevent unauthorized use, handle can be padlocked by inserting padlock into holes provided in handle and head.
Unit: EA
UPC: 008391033010
Model Number: 802LF

• Bury Depth: 2 ft
• Handle Material: Iron
• Head Material: Iron
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Overall Length: 54 in
• Pressure Rating: 120 psi
• Rod Diameter: 7/16 in
• Rod Material: Brass
