Simpson Strong-Tie | Our Item #:
DORG3238011
13% off

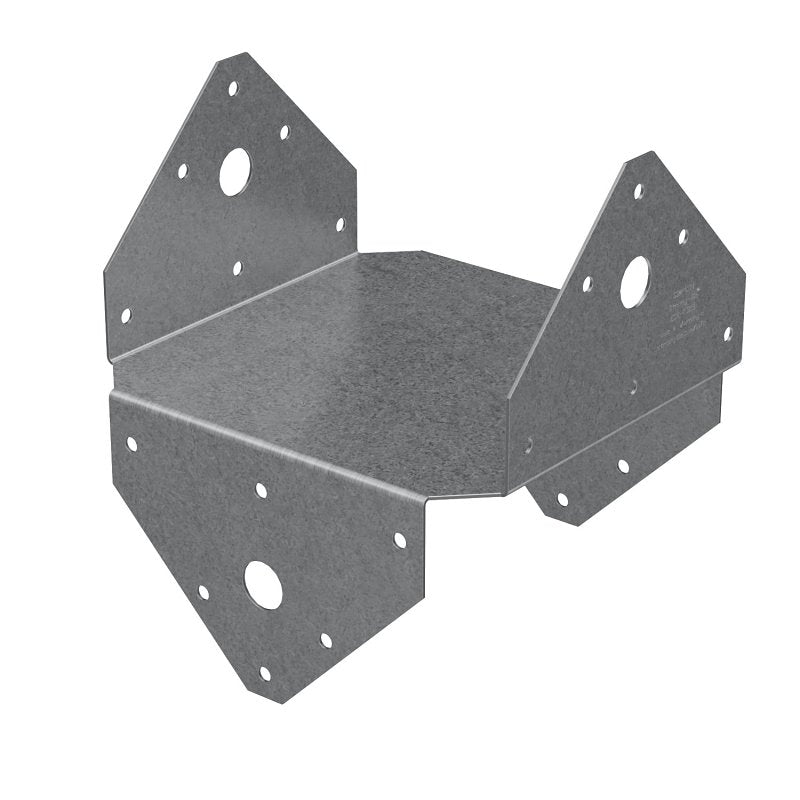

Simpson Strong-Tie BC Series BC6 Post Cap, 1185 lb Uplift, 1825 lb Lateral, Steel, Galvanized, 1/PK, Pack of 10
$232.95
$268.50
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie BC Series BC6 Post Cap, 1185 lb Uplift, 1825 lb Lateral, Steel, Galvanized, 1/PK, Pack of 10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie BC Series BC6 Post Cap, 1185 lb Uplift, 1825 lb ...
$232.95
$268.50
Unit price
/
Unavailable
Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Galvanized (G90) for extra corrosion resistance
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Do not install bolts into pilot holes
- Install with 0.162 x 3-1/2 in nails or 0.162 x 2-1/2 in nails
Description
Description
The BC post cap is designed to connect a beam to a post. The 18 ga material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Additional Information
Additional Information
- Fastener Type: Nail
- Finish: Galvanized
- Length: 4-3/8
- Material: Steel
- Nail Diameter: 0.162 in
- Weight Capacity: 1185 lb Uplift 1825 lb Lateral
- Width: 5-1/2
