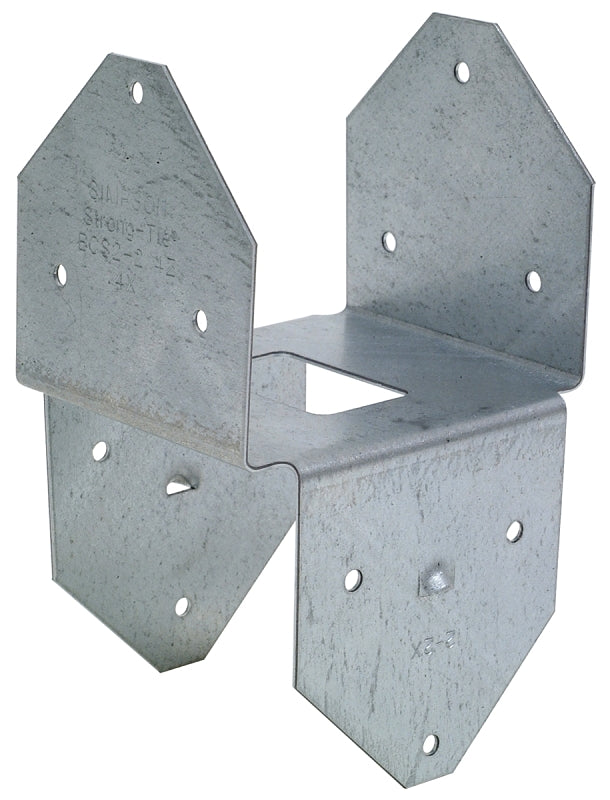

Simpson Strong-Tie BCS Series BCS2-2/4Z Post Cap, 2 to 2 x 4 in Post/Joist, Steel, ZMAX, Pack of 20
$176.35
$203.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie BCS Series BCS2-2/4Z Post Cap, 2 to 2 x 4 in Post/Joist, Steel, ZMAX, Pack of 20 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Opposing flanges provide increased lateral resistance
- Sized specifically for multi-2X widths
- Do not install bolts into pilot holes
- Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads
Description
Description
The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2X members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.
Additional Information
Additional Information
- Fastener Type: Nail
- Finish: ZMAX
- Length: 2-7/8
- Material: Steel
- Nail Diameter: 0.162 in
- Post/Joist Size: 2 to 2 x 4 in
- Width: 3-9/16
